Huawei CE6810-48S-LI
Back to products
GFCL XGSPON combo card

Huawei CE6810-24S2Q-LI

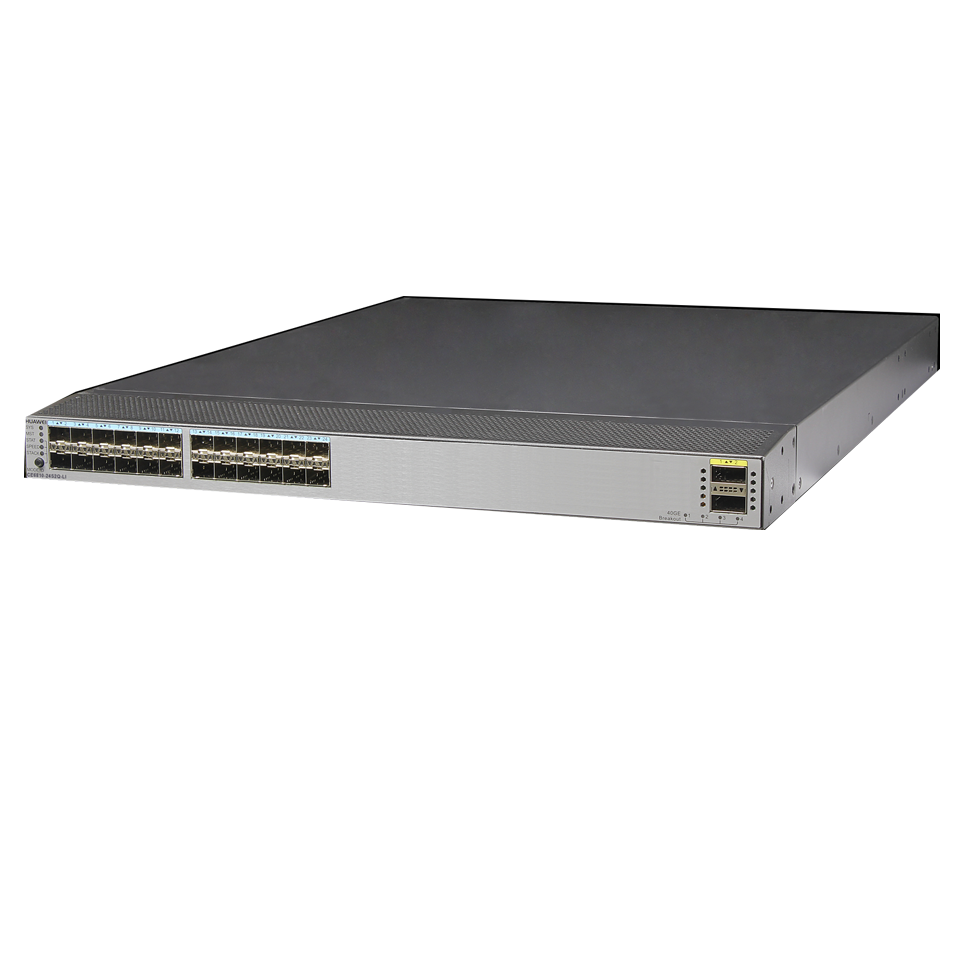

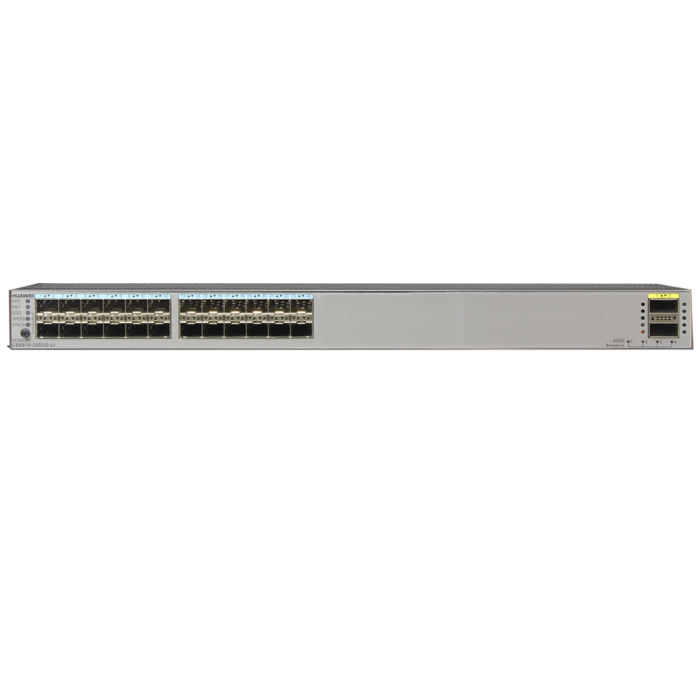

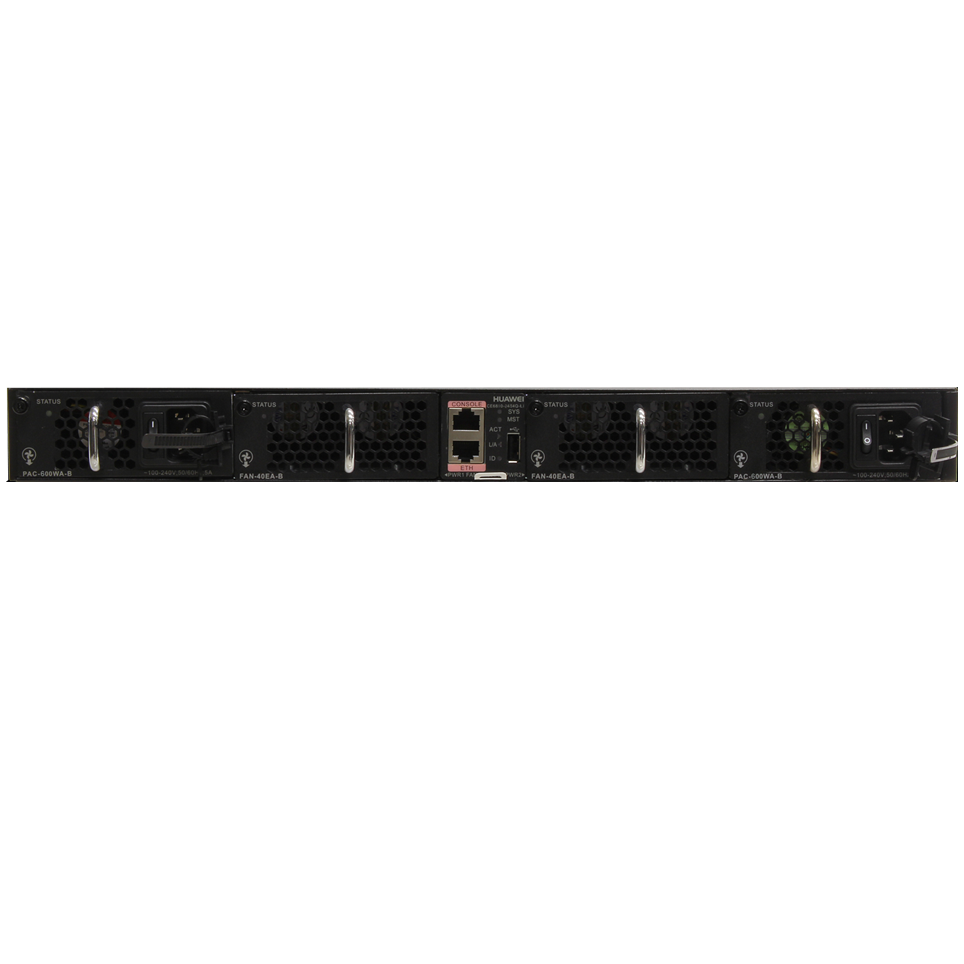

Huawei CE6810-24S2Q-LI switch with 24-ports 10GE SFP+, 2-ports 40GE QSFP+, 2x600W AC Power Module, 2xFAN Box, Port-side Exhaust

Inquiry
Category: Tags: ,

Huawei CloudEngine 6810 (CE6810 for short) series switches are next-generation 10G Ethernet switches designed for data centers and high-end campus networks, providing high-performance, high-density 10GE ports, and low latency. The CE6810 series uses an advanced hardware architecture with 40GE uplink ports and the industry’s highest density of 10GE access ports.

Tech Specs:

Item Description
Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 600.0 mm x 43.6 mm (17.4 in. x 23.6 in. x 1.72 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 10.1 kg (22.27 lb)
Environment parameters Temperature Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)



NOTE:

When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).



Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 51 dBA
  • Front-to-back airflow: < 48 dBA
Power specifications Power source type AC/DC
AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current
  • 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
  • 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
Chassis power consumption Maximum power consumption 171 W
Typical power consumption 88 W (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 2 ports, double power modules)
Chassis heat dissipation Maximum heat dissipation 583 BTU/hr
Typical heat dissipation 300 BTU/hr (100% throughput, SFP+ cables on 24 ports and QSFP+ cables on 2 ports, double power modules)
Surge protection Power module:

  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability Power module backup 1+1 backup
Fan module backup Not supported
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 59.37 years
Mean time to repair (MTTR) 1.79 hours
Availability 0.99999655471
Technical specifications Processor 1.2 GHz, quad-core
DRAM Memory 2 GB
NOR Flash 16 MB
NAND Flash 512 MB
Stack Service port supporting the stack function 10GE optical ports and 40GE optical ports
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
