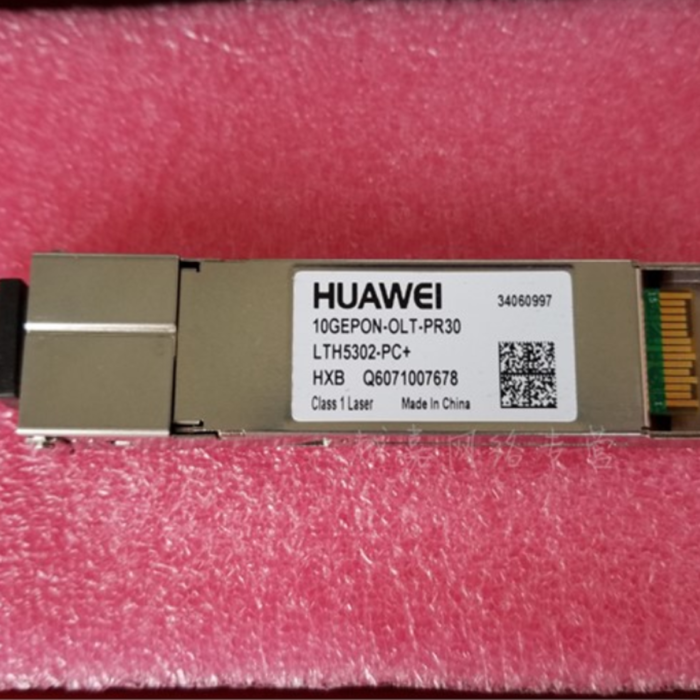

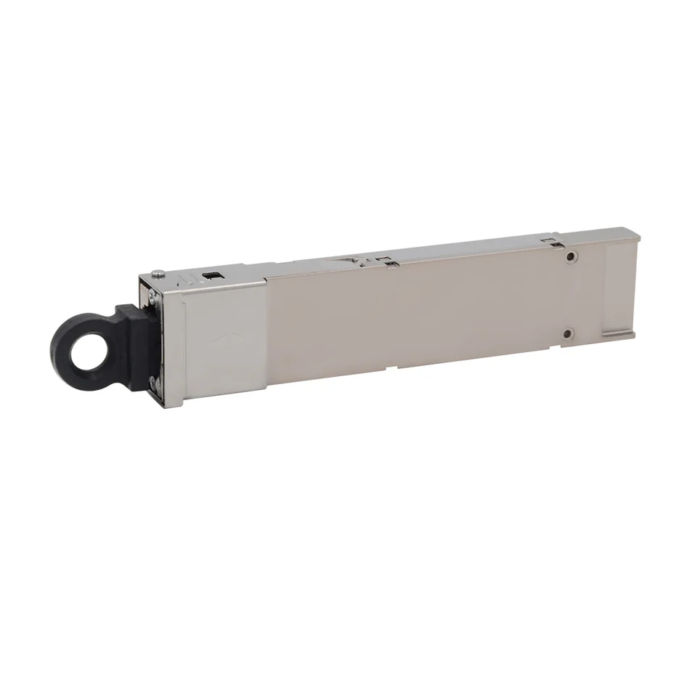

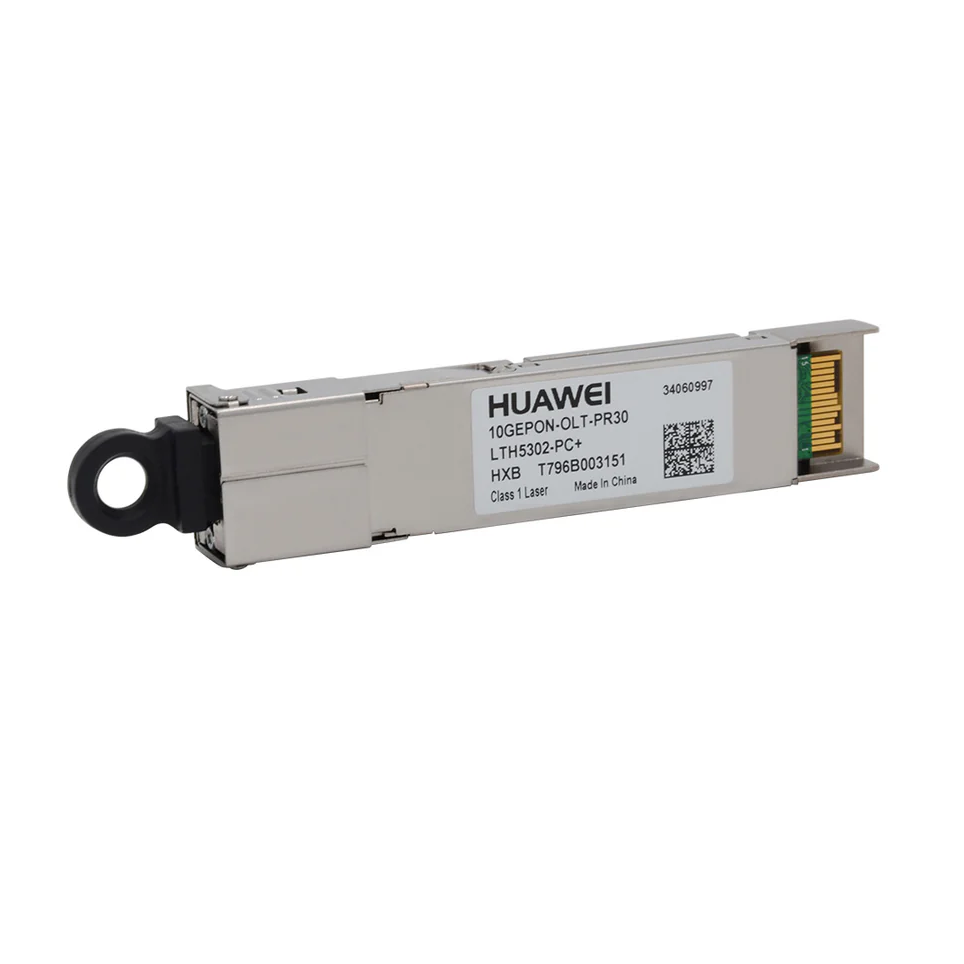

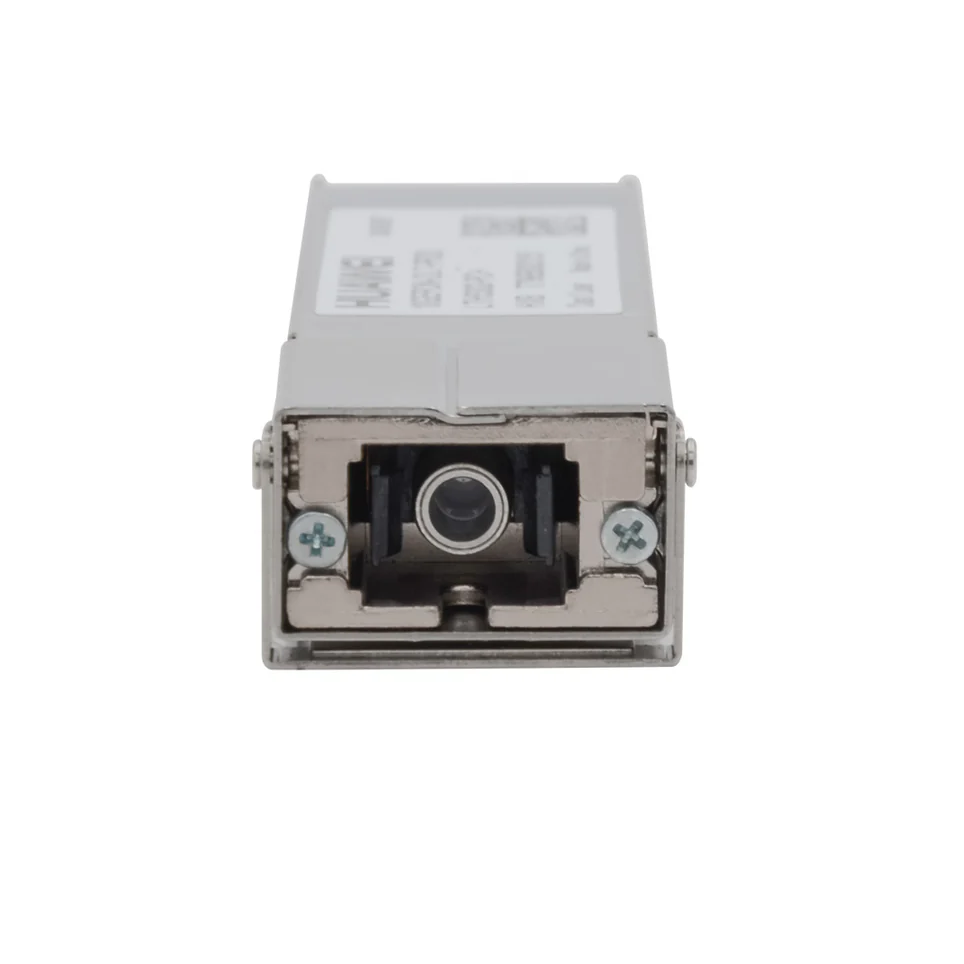

Huawei 10G EPON OLT PR30
Huawei EPON OLT PR30 is 10G EPON OLT XFP optical transceiver on 10G EPON board.
Huawei Symmetric 10G EPON OLT-PRX30 XFP optical transceiver on 10G EPON board XEBD, XEHD.
| 10G EPON Transceiver Information | ||
| Type | One-fiber bi-directional optical module, PR30 | |
| Operating Wavelength | 10G Channel
1G Channel
|
|
| Encapsulation Type | XFP | |
| Port Rate | 10G Channel
1G Channel
|
|
| Minimum Output Optical Power | 10G:2dBm GE:3dBm |
|
| Maximum Output Optical Power | 10G: 5dBm GE:7dBm |
|
| Maximum Receiver Sensitivity | 10G:-28dBm GE:-29.78dBm |
|
| Optical Connector Type | SC | |
| Optical Fiber Type | Single-mode | |
| Overload Optical Power | 10G:-6dBm GE: -9dBm |
|
| Extinction Ratio | 10G: 6dB GE: 9dB |
|
