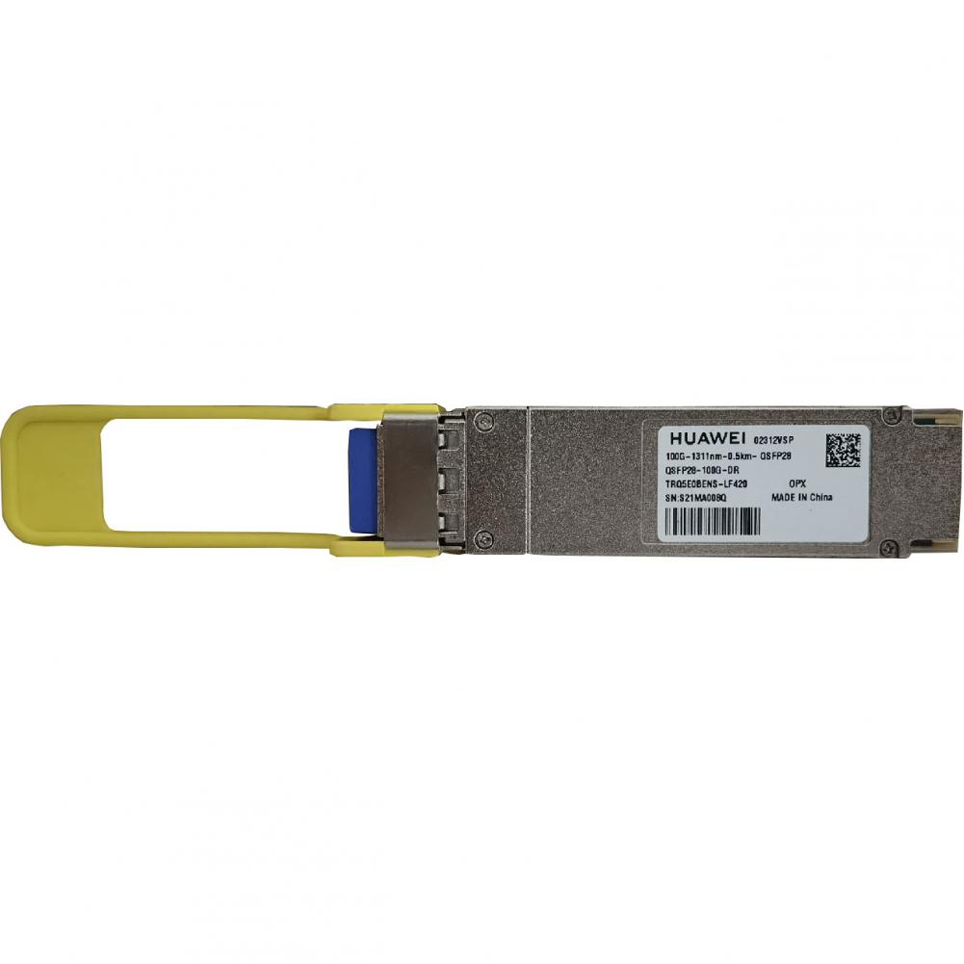

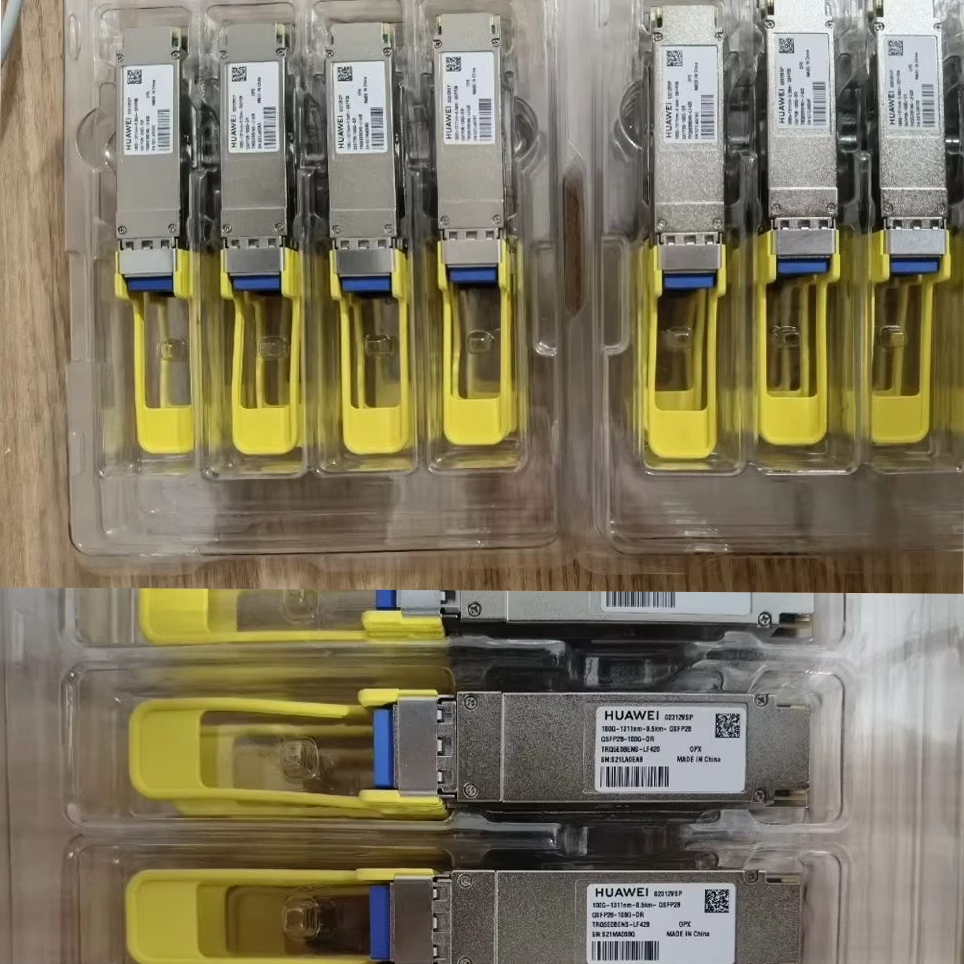

Huawei 02312VSP QSFP28-100G-DR
Huawei Original Tranceiver 02312VSP QSFP28-100G-DR
| Item | Value |
|---|---|
| Basic Information | |
| Module name | QSFP28-100G-DR |

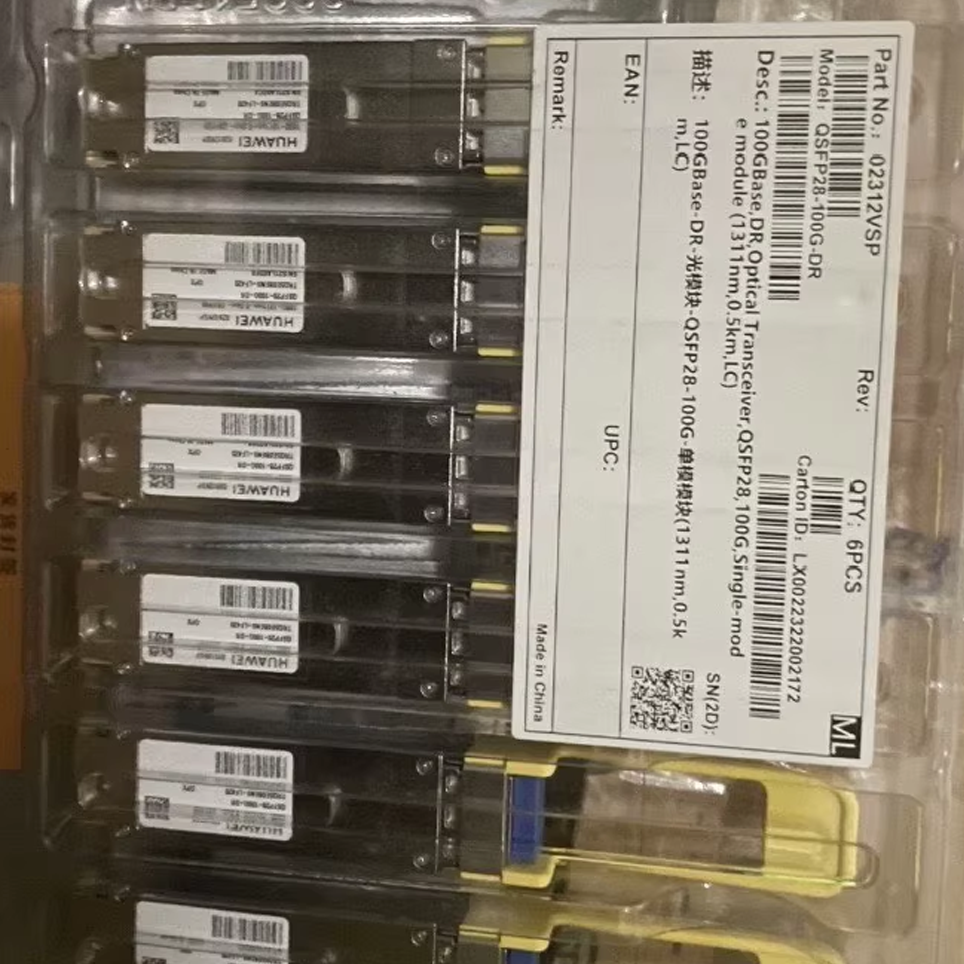

| Part Number | 02312VSP |
| Model | QSFP28-100G-DR |
| Form factor | QSFP28 |
| Application standard/Type | 100GBase-DR |
| Connector type | LC/DLC |
| Optical fiber type | SMF |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Working case temperature [°C (°F)] | 0°C to 70°C (32°F to 158°F) |
| DDM options | Supported |
| Transmission rate [bit/s] | 100Gbit/s |
| Target transmission distance [km] | Single-mode fiber (G.652) (with diameter of 9 μm): 500 m |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1311 nm |
| Maximum Tx optical power (AVG) [dBm] | 4 dBm |
| Minimum Tx optical power (AVG) [dBm] | -2.9 dBm |
| Maximum Tx optical power (OMA) [dBm] | 4.2 dBm |
| Minimum Tx optical power (OMA) [dBm] | -0.8 dBm |
| Minimum extinction ratio [dB] | 3.5 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity (AVG) [dBm] | -5.9 dBm |
| Rx sensitivity (OMA) [dBm] | Max(-3.9,SECQ-5.3) |
| Overload power (AVG) [dBm] | 4 dBm |
