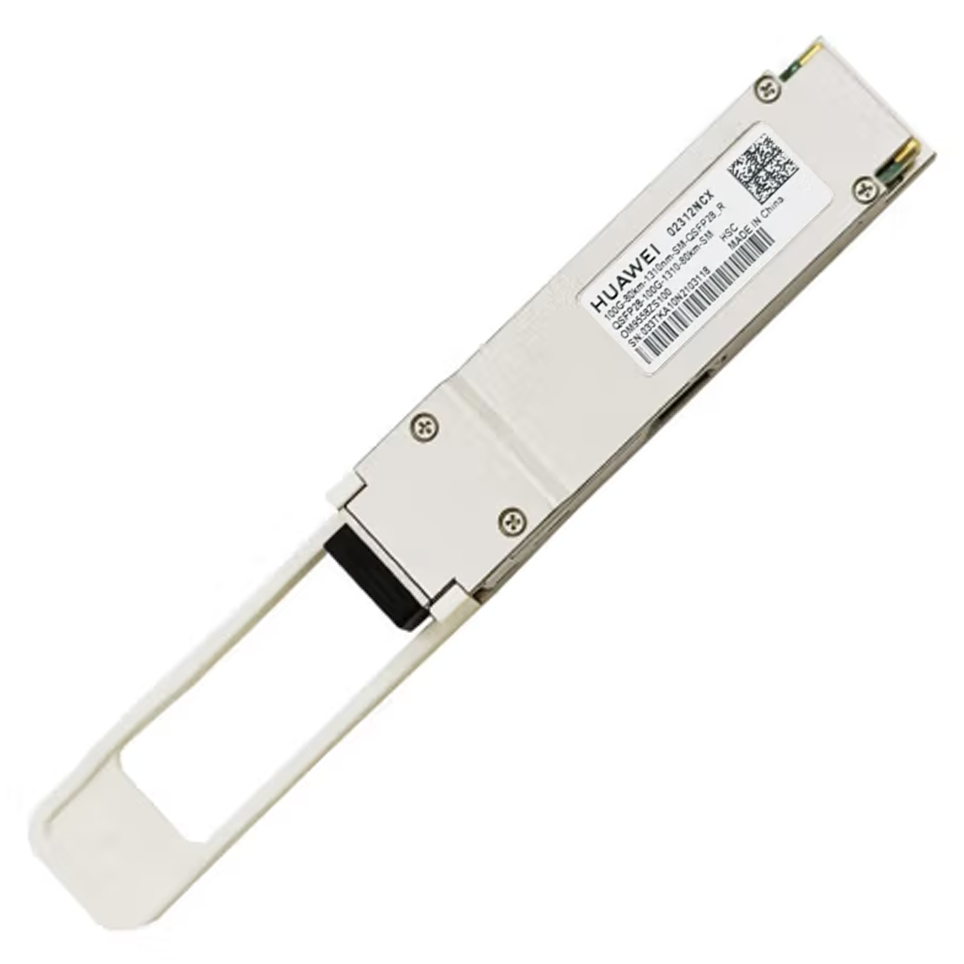

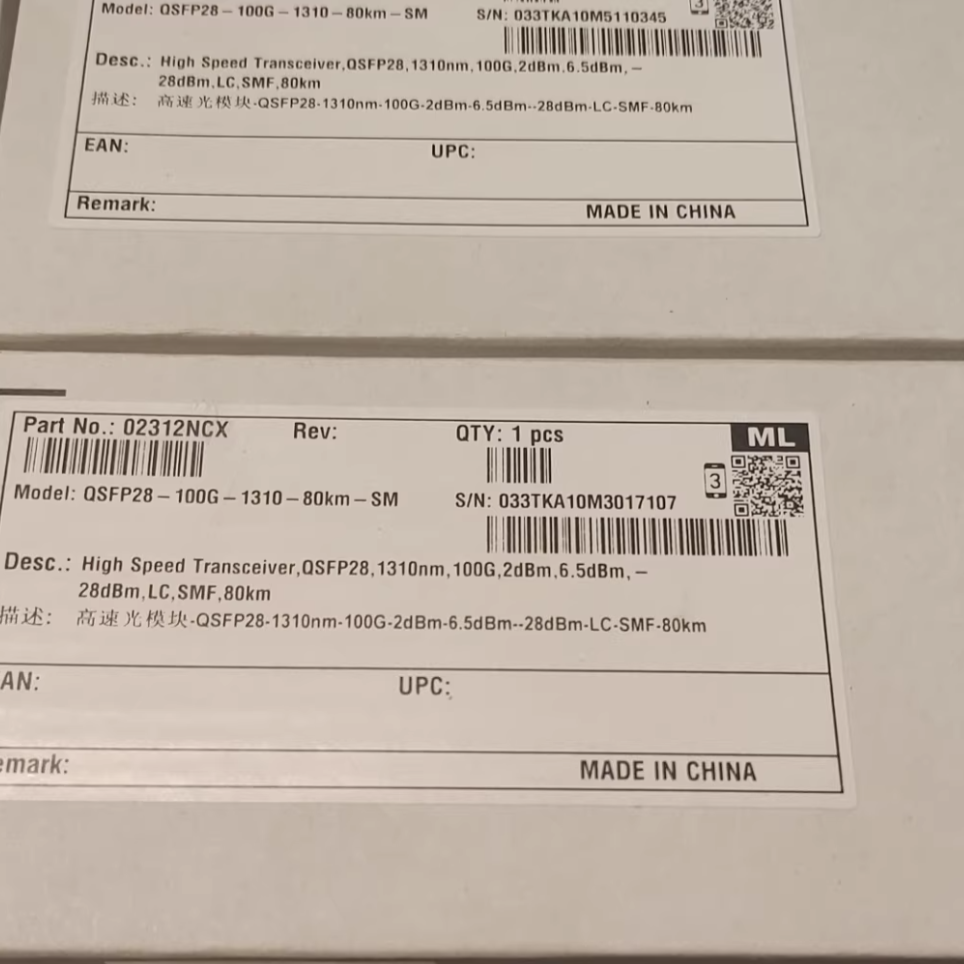

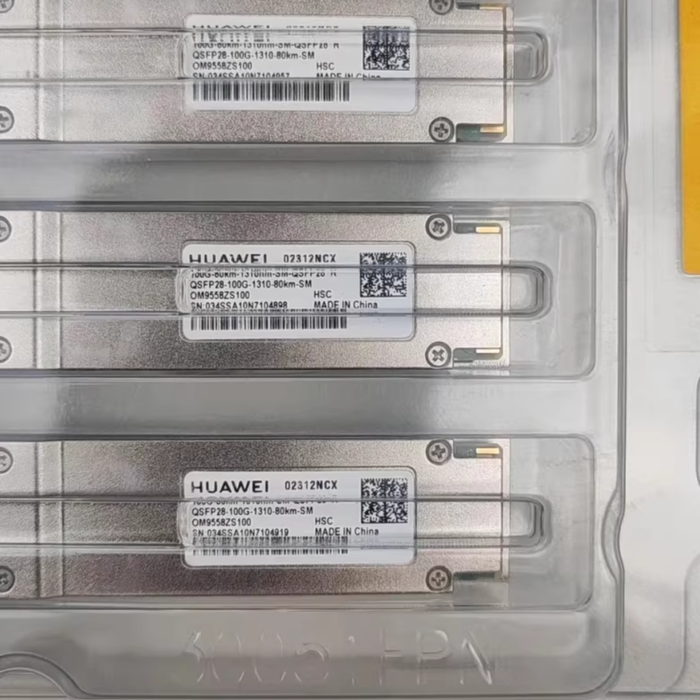

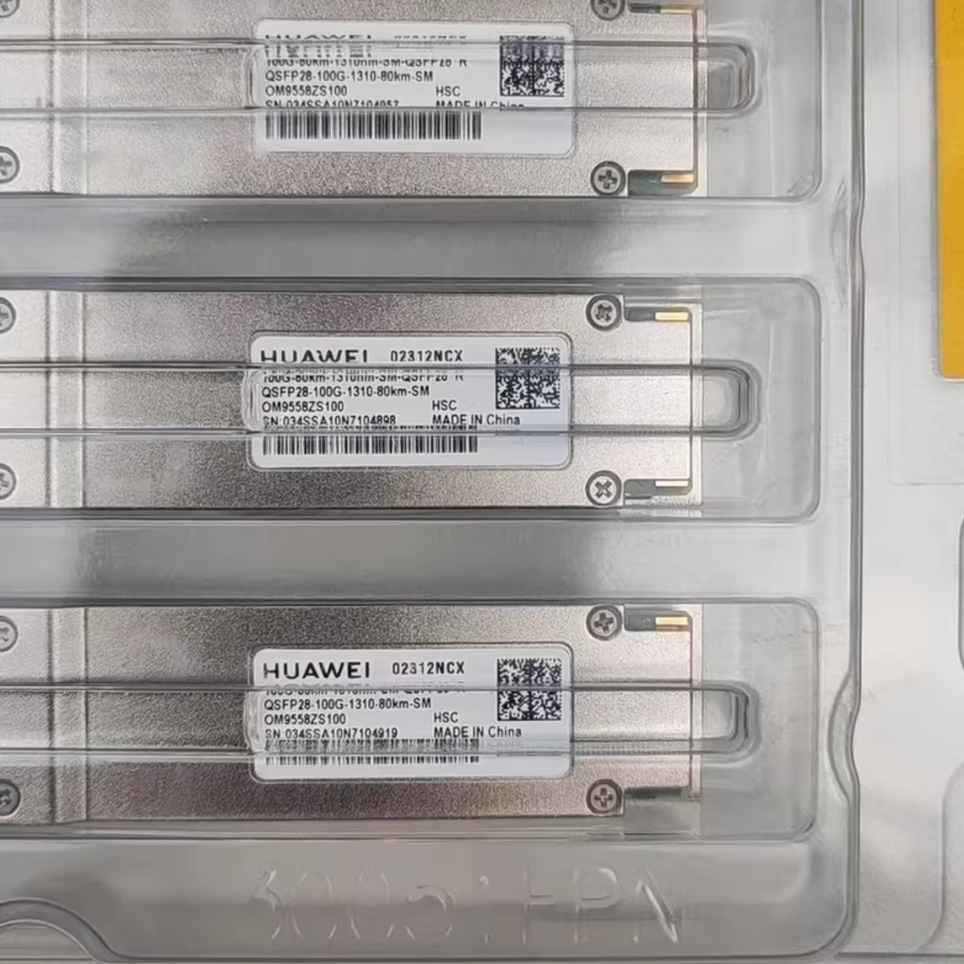

Huawei 02312NCX QSFP28-100G-1310nm-80km-SM-01
High Speed Transceiver,QSFP28,1310nm,100G,2dBm,6.5dBm,-28dBm,LC,SMF,80km
Huawei QSFP28-100G-1310nm-80km-SM is a high-speed transceiver designed to meet the extensive needs of high-capacity and long-distance data transmission. Engineered with precision, this QSFP28 module operates at a wavelength of 1310nm, delivering 100G speeds across single-mode fiber for up to 80km.
| Basic Information | |
| Part Number | 02312NCX |
| Model | QSFP28-100G-1310nm-80km-SM-01 |
| Description | High Speed Transceiver,QSFP28,1310nm,100G,2dBm,6.5dBm,-28dBm,LC,SMF,80km |
| Level-1 category | 100Gbps QSFP28 Optical Module |
| Module name | 100Gbps(4*25.7)-QSFP28-SMF-1295.56~1309.14nm-80km-commercial |
| Technical Specifications | |
| Connector type | LC |
| Optical fiber type | SMF |
| Form factor | QSFP28 |
| Transmission rate [bit/s ] | 103.125 Gbit/s |
| Target transmission distance [km] | 80 km |
| Application standard | Huawei Define |
| Working case temperature [°C(°F)] | 0°C to 70°C(32°F to 158°F) |
| Center wavelength [nm] | 1295.56 nm
1300.05 nm 1304.58 nm 1309.14 nm |
| Overload power (OMA) [dbm] | – |
| Overload power (AVG) [dbm] | per lane: -3.5 dBm |
| Minimum Tx optical power (OMA) [dbm] | – |
| Minimum Tx optical power (AVG) [dbm] | per lane: 2 dBm |
| Maximum Tx optical power (OMA) [dbm] | – |
| Maximum Tx optical power (AVG) [dbm] | per lane: 6.5 dBm |
| Minimum extinction ratio [db] | 6 dB |
| Rx operating wavelength range [nm] | 1294.53 nm – 1296.59 nm
1299.02 nm – 1301.09 nm 1303.54 nm – 1305.63 nm 1308.09 nm – 1310.19 nm |
| Tx operating wavelength range [nm] | 1294.53 nm – 1296.59 nm
1299.02 nm – 1301.09 nm 1303.54 nm – 1305.63 nm 1308.09 nm – 1310.19 nm |
| Rx sensitivity (OMA) [dbm] | – |
| Rx sensitivity (AVG) [dbm] | per lane: -28 dBm |
| DDM options | SFF-8636 |
| Bit error ratio (BER) | <1x10E-12 |
| Environment standard | RoHS |
| Security standard | FCC Class B, IEC 60825-1 Class 1 |
| ESD(HBM1) | 1000 |
