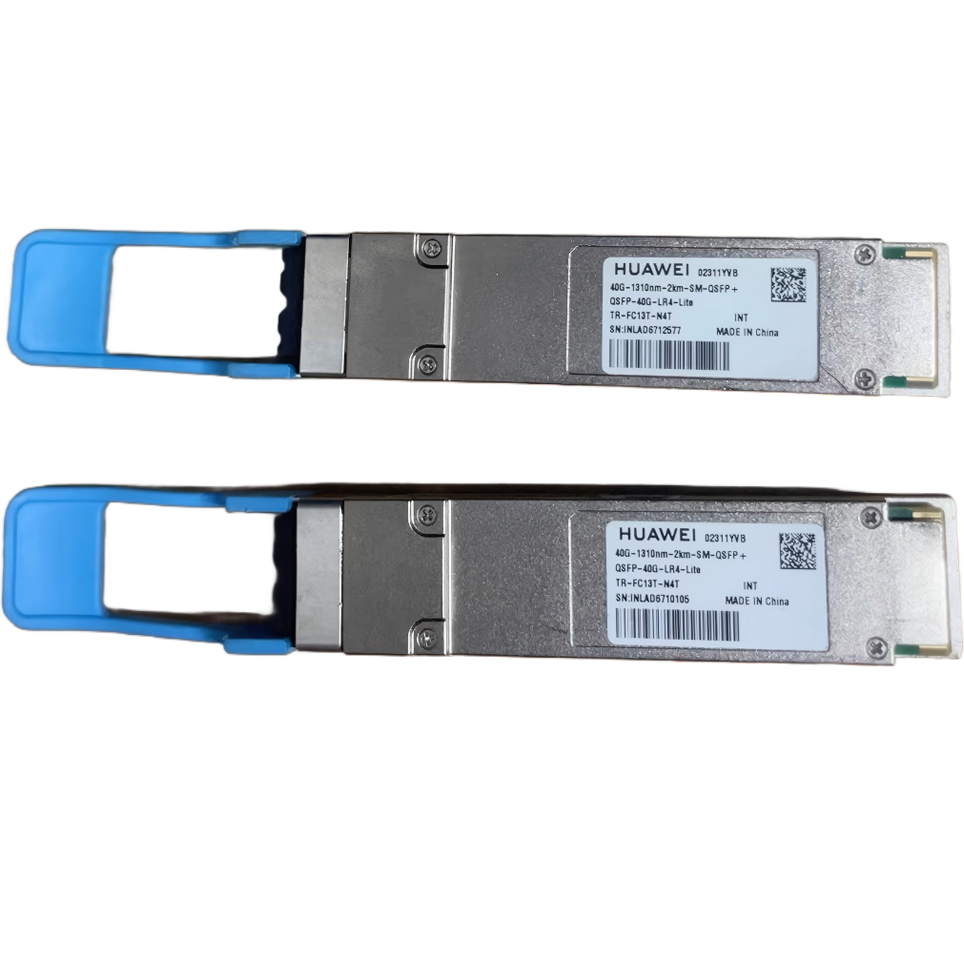

Huawei 02311YVB QSFP-40G-LR4-Lite
Huawei Original Tranceiver 02311YVB QSFP-40G-LR4-Lite
| Item | Value |
|---|---|
| Basic Information | |
| Module name | QSFP-40G-LR4-Lite |
| Part Number | 02311YVB |
| Model | QSFP-40G-LR4-Lite |
| Form factor | QSFP+ |
| Optical port standard/type | 40GBASE-LR4 Lite |
| Connector type | LC/DLC |
| Optical fiber type | SMF |
| Type of the end face of the ceramic ferrule on optical ports | PC or UPC |
| Working case temperature [°C (°F)] | 0°C to 70°C (32°F to 158°F) |
| Transmission rate [bit/s] | 40Gbit/s |
| Target transmission distance [km] | Single-mode fiber (G.652) (with diameter of 9 μm): 2 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1271 nm,1291 nm,1311 nm,1331 nm |
| Maximum Tx optical power (AVG) [dBm] | 2.3 dBm |
| Minimum Tx optical power (AVG) [dBm] | -9 dBm |
| Minimum extinction ratio [dB] | 3.5 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity (OMA) [dBm] | -10.5 dBm |
| Overload power (AVG) [dBm] | 2.3 dBm |
| Functions and Features | |
| DDM options | Supported |
