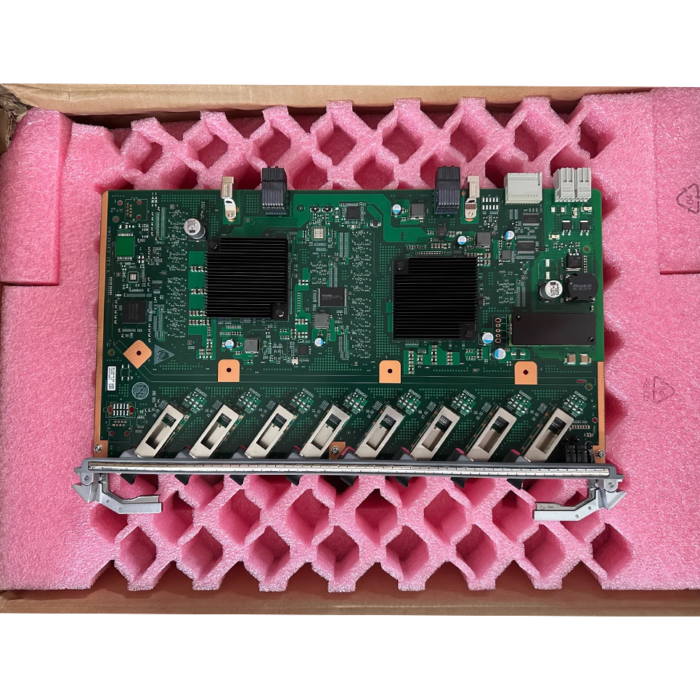

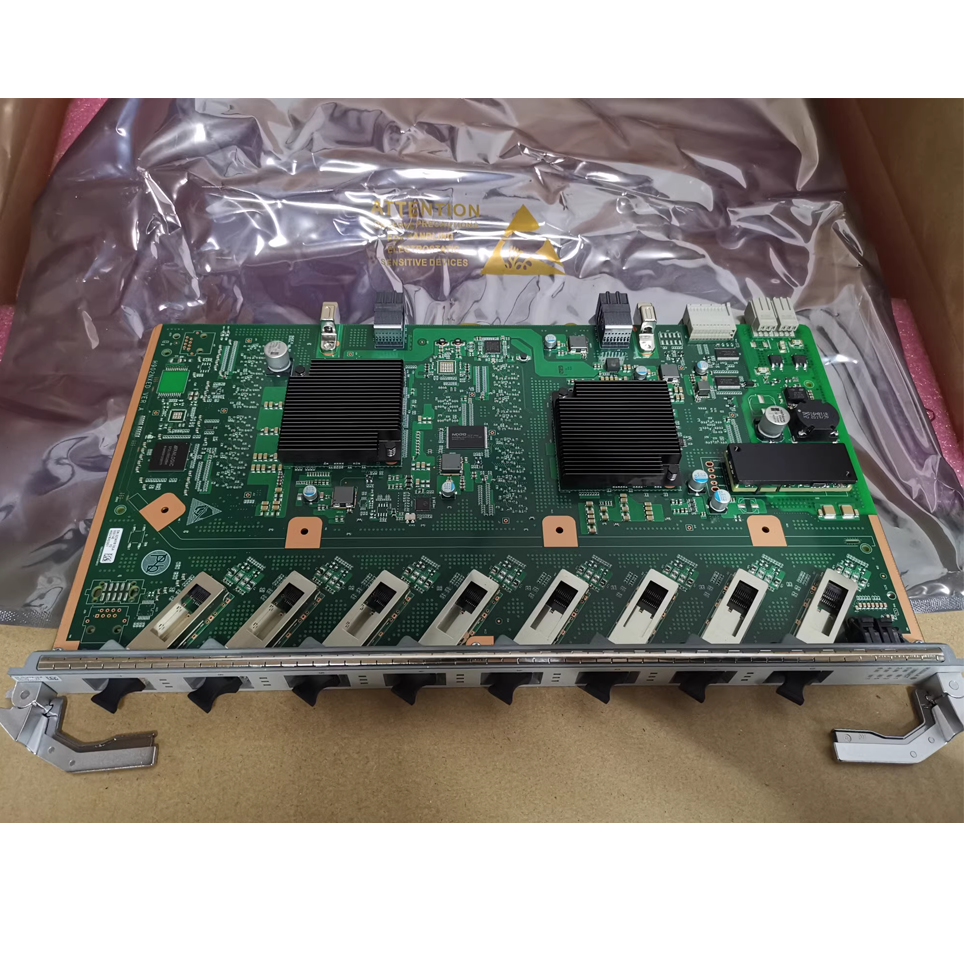

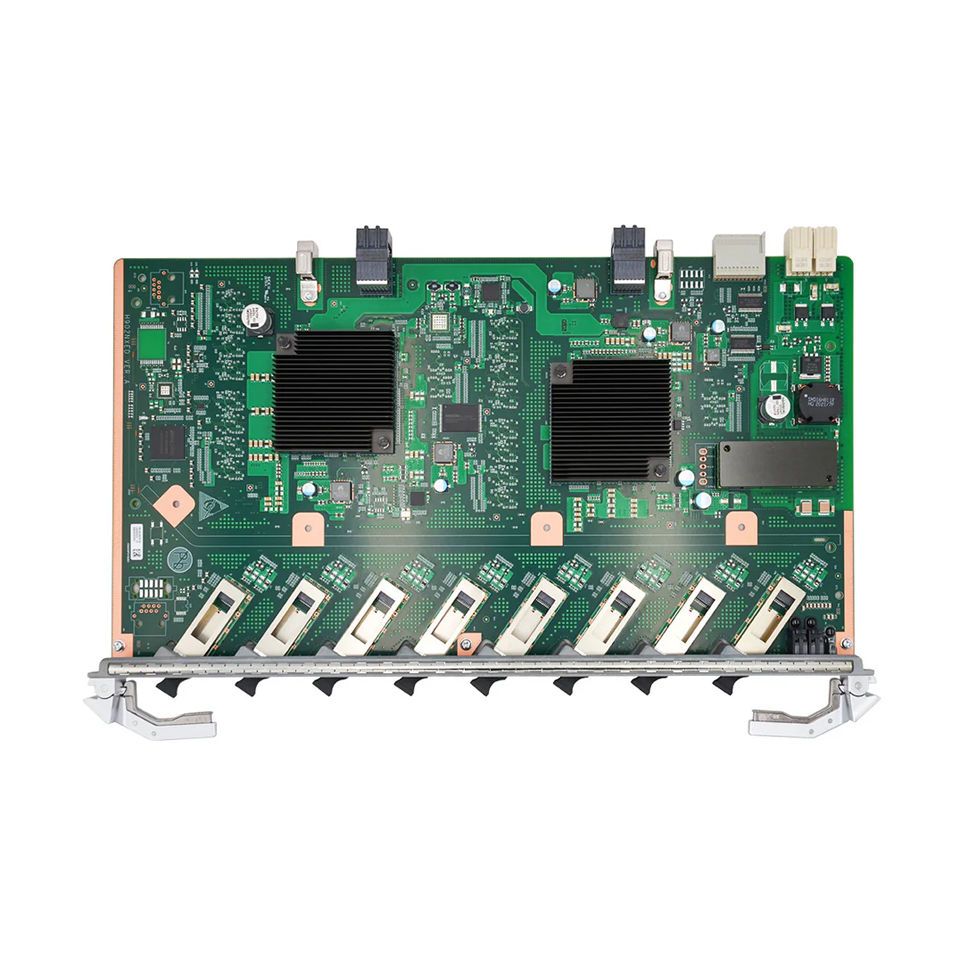

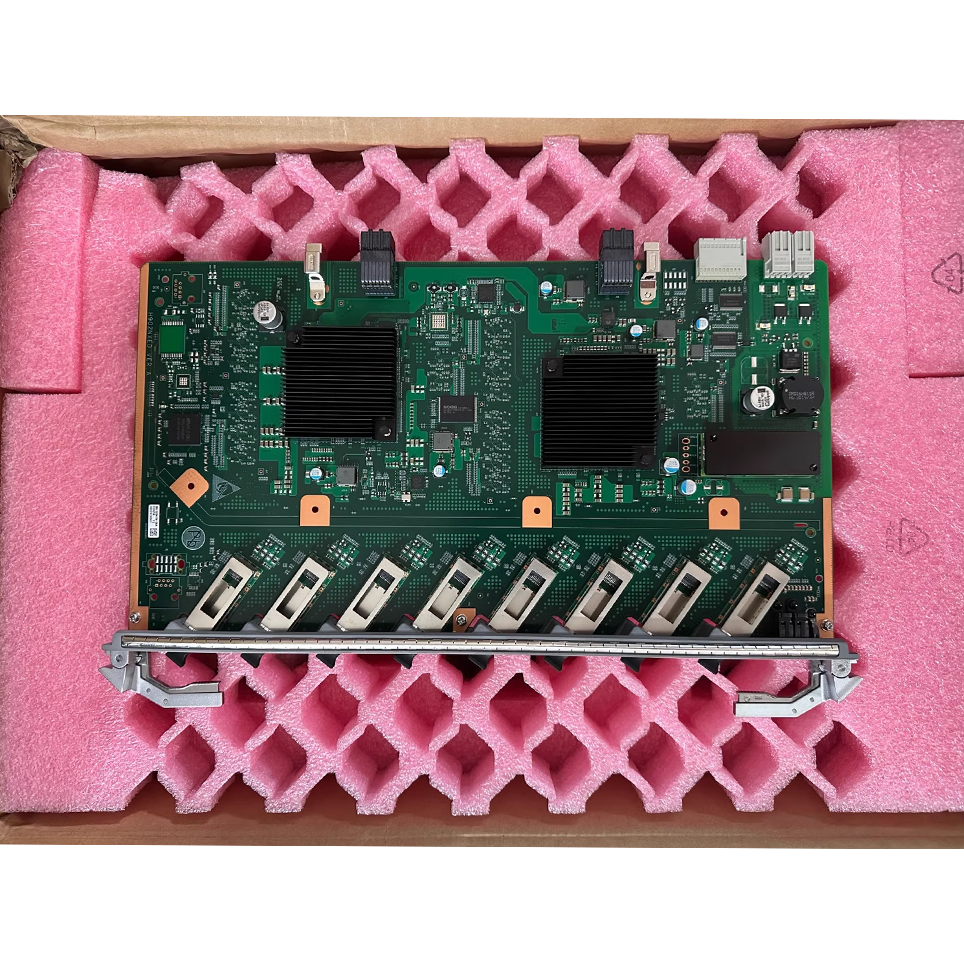

H902NXED 10G Uplink Board
Huawei H902NXED is 8-port Enhanced 10GE optical uplink board.
Huawei H902NXED Board is 8-port 10GE/GE optical uplink board applied to MA5800 Series OLT
| Specification | Description |
| Brand | Huawei |
| Model | H902NXED |
| MAC address table size | 262143 |
| External ports | 8 x 10GE (SFP+)/GE (eSFP/SFP) |
| Dimensions (mm) | 23.30 (W) x 257.90 (D) x 399.20 (H) |
| Weight (kg) | 0.99 |
| Power Consumption (W) | Static: 40 |
| Maximum: 53 | |
| Operating temperature | -40°C to +65°C |
| Upstream transmission | Supported |
| 1588v2 | Supported |
| 1588ACR | Supported |
| Sync ETH clock | Supported |
| Link aggregation | Supported |
| Pluggable optical | Supported |
| Protection group | Supported |
| Temperature query and high-temperature alarm | Supported |
| Automatic power shutdown in case of a high temperature | Supported |
