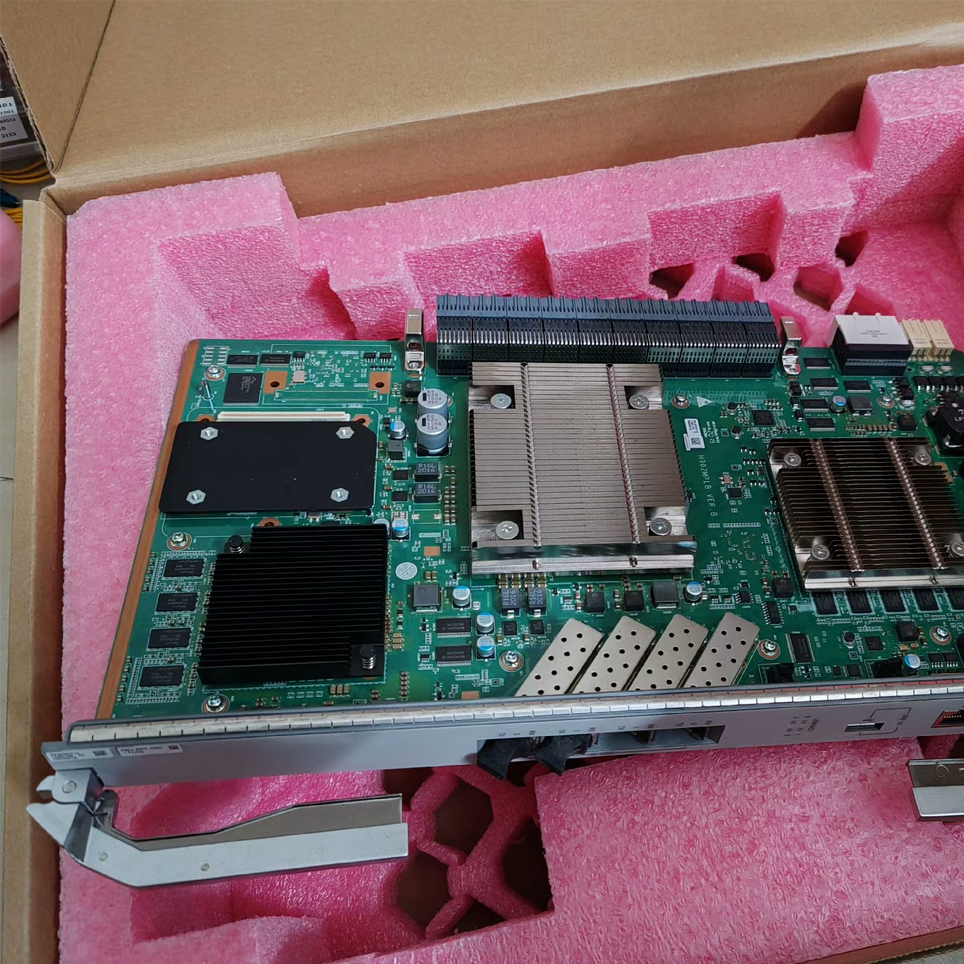

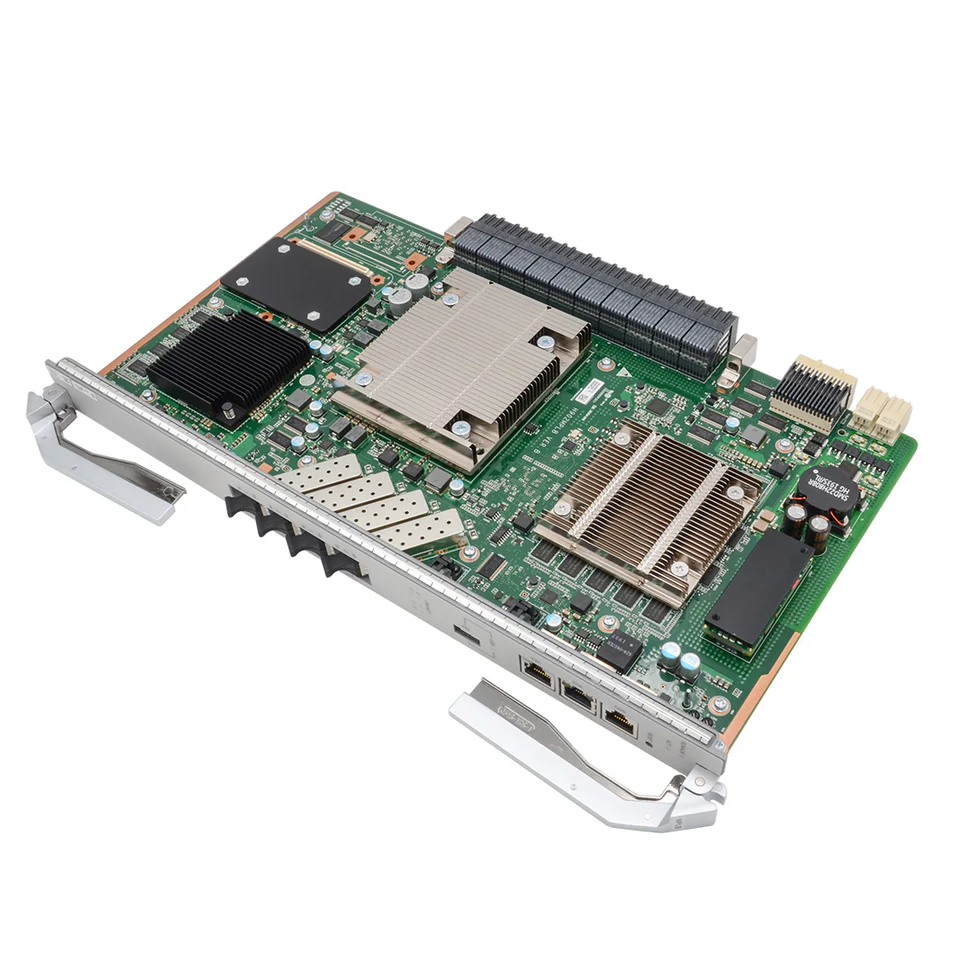

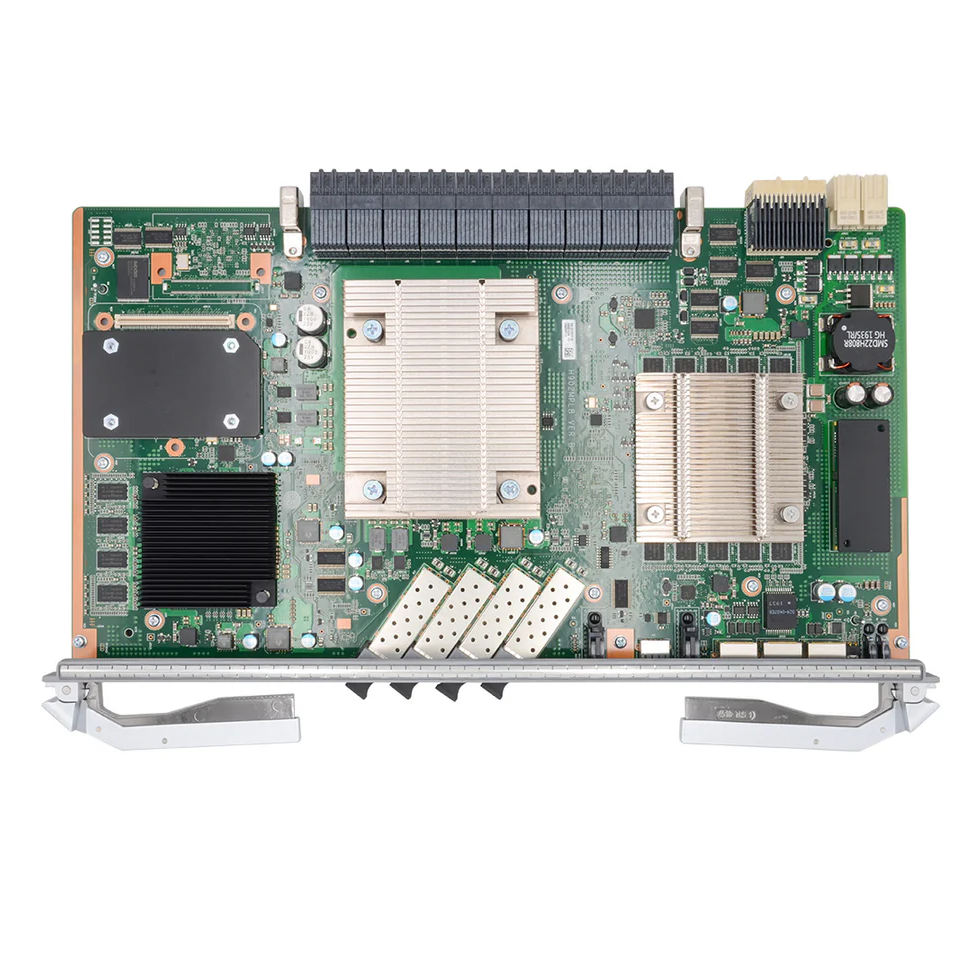

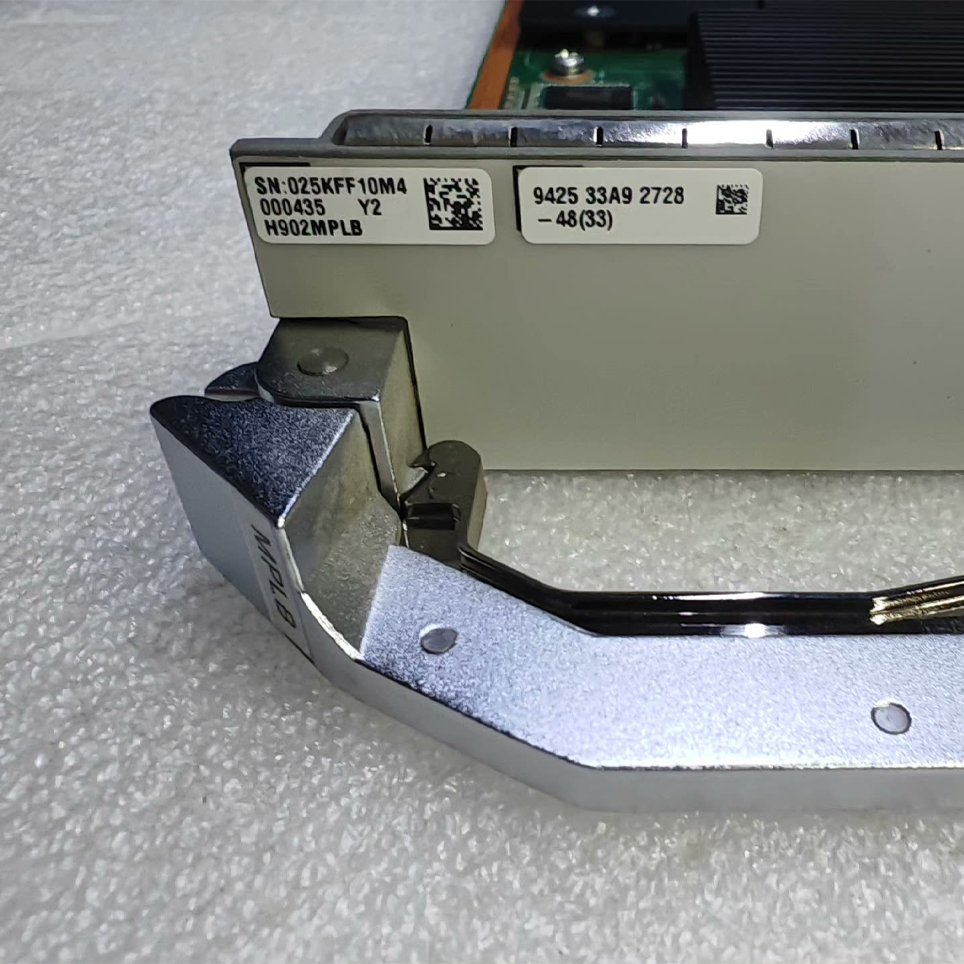

H902MPLB Control Board
Huawei H902MPLB is MA5800 X7/X15/X17 main control board integrated with 4-port 10GE/GE optical uplink port.
The H902MPLB board is a super control unit board for optical access. It is the core for system control and service switching and aggregation, and is used for MA5800-X17/X15/X7 subracks.Huawei MPLB Board transmits key management and control information through the master-slave serial port, the in-band GE / 10GE channel and the service board, completes the configuration, management and control of the entire product, and at the same time implements simple routing protocols and other functions.
| Function | |
| Bandwidth per slot | 200Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 17408 |
| Multicast user | 17408 |
| Configurable multicast channel | 4096 |
| Concurrent multicast channel | 4000 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 139264 |
| ARP table | 66048 (Before the V100R017C10 version) 98816 (V100R017C10 version) 131072 (V100R018C00 and later version) |
| ACL rule | 1042 |
| Maximum Frame Size | 2052 bytes.
9216 bytes (jumbo frame enabled) |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption | Static: 62W Maximum: 117 W |
| Mechanical Specification | |
| Dimensions(mm) | 31 (W)x 258.9 (D) x 399.1 (H) |
| Weight(kg) | 2.2 |
