H902GPUF C+

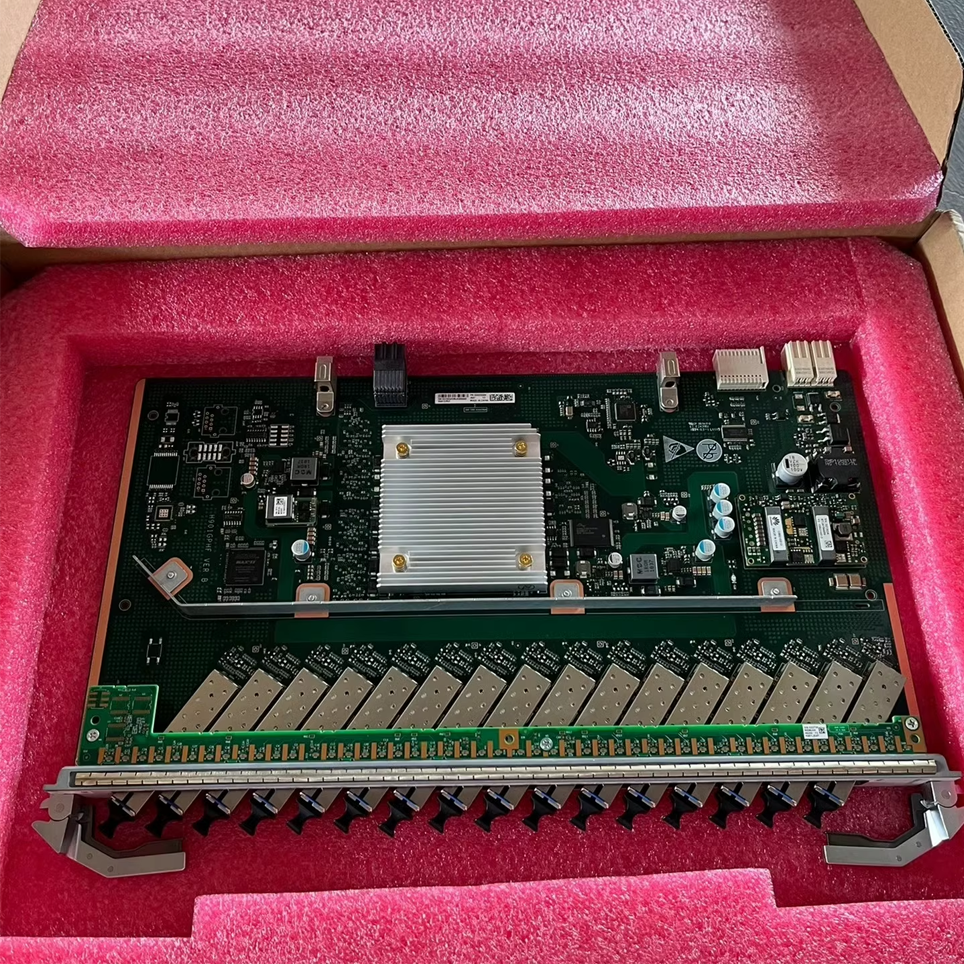

Huawei H902GPUF is 16-port GPON OLT interface board with C+ SFP module
The H902GPUF C+ is 16-port GPON OLT interface board that applied to MA5800 Series OLT.
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Support split ration 1:128
Transmit Speed: 2.488Gbit/s
Receive Speed: 1.244Gbit/s
Interface Type: SC
Transmit Wavelength: 1490nm
Receive Wavelength: 1310nm
C+ SFP Module Optical Power: 3 dBm~7 dBm
Receiver Sensitivity: -32 dBm
Maximum number of MAC addresses: 32768
GPUF is a 16 port GPON interface card of Huawei NG OLT, provides GPON service access from ONT. GPHF can maximum access 16*128 GPON subscribers.
| Specification | |
| Service ports | |
| GPON Port | 16-GPON Port |
| GPON SFP Module Specification | |
| Type | C+ Module : One-fiber bi-directional optical module, class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimun Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption | |
| Power Consumption | Static: 25W; Maximum:50W |
| Operating temperature | -40°C to +65°C |
