H901MPSA Control Board

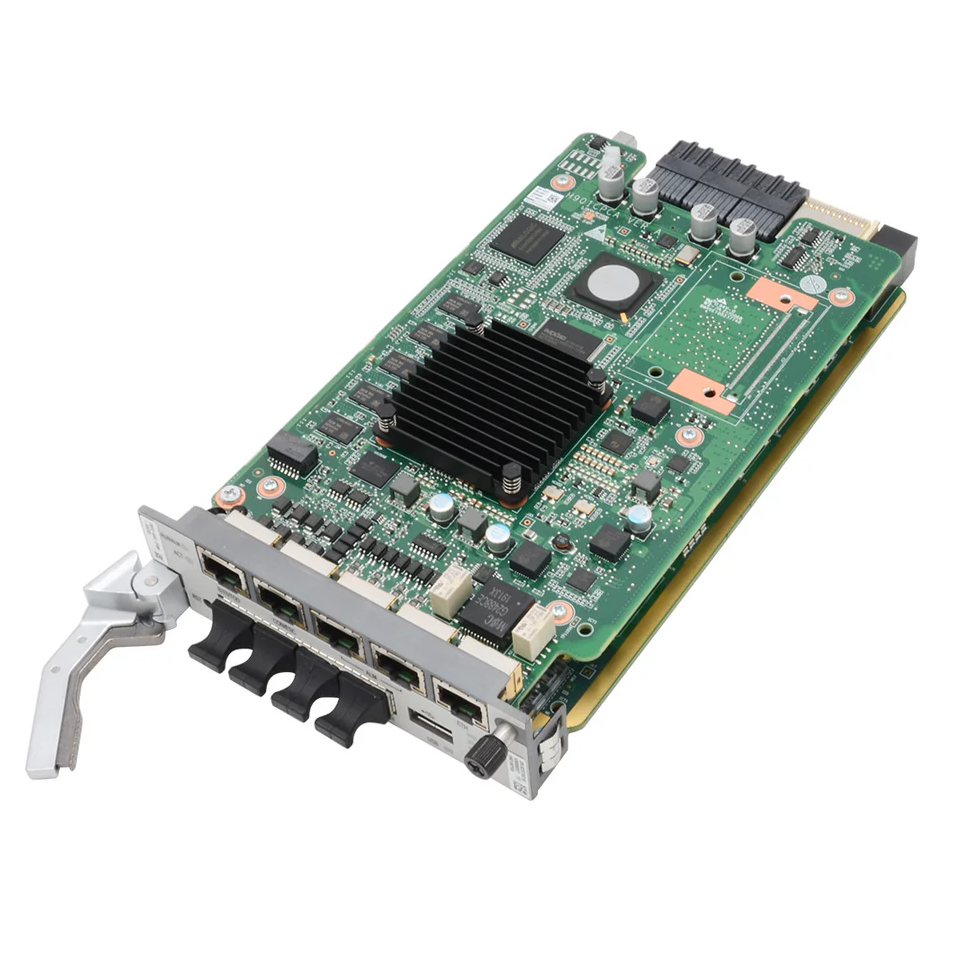

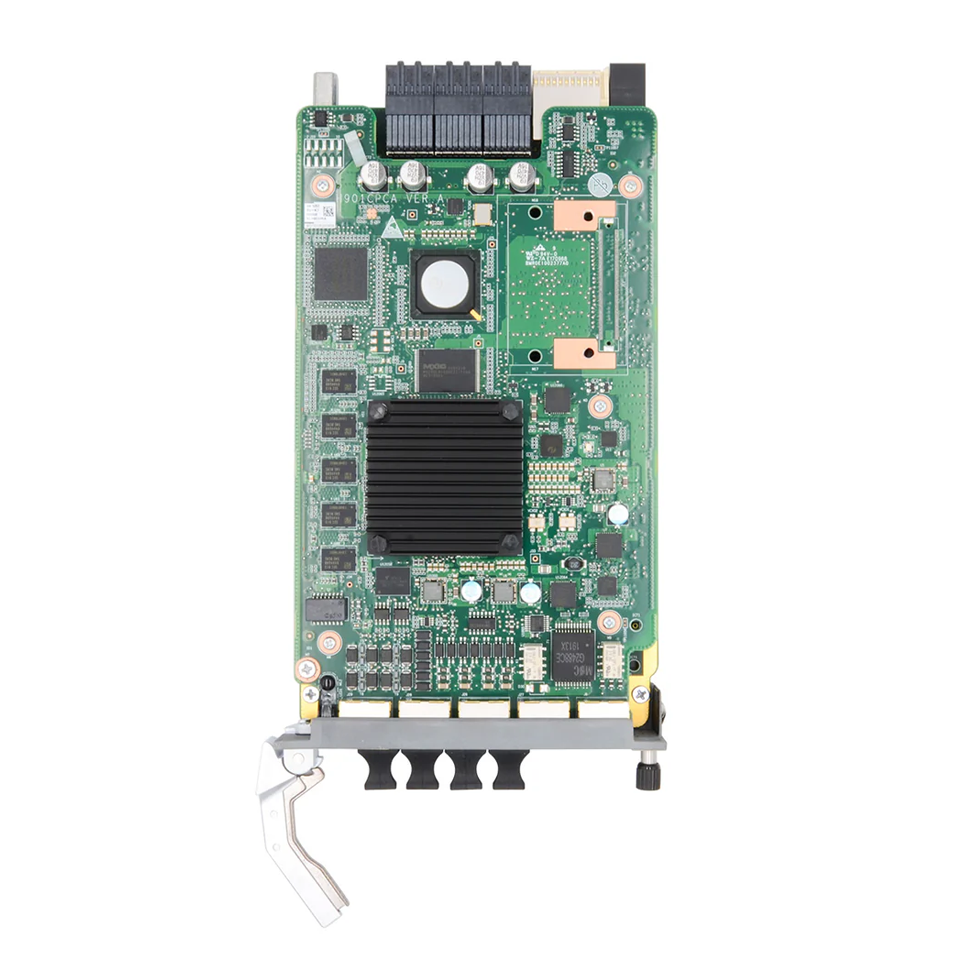

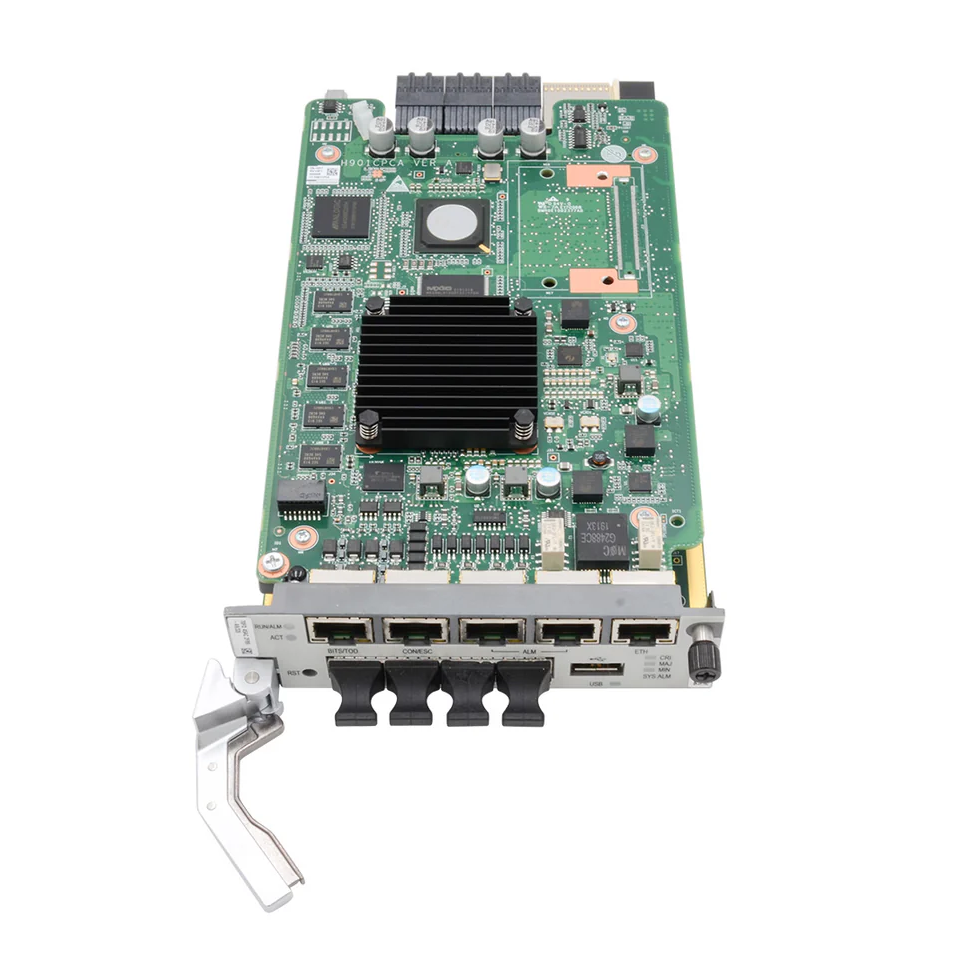

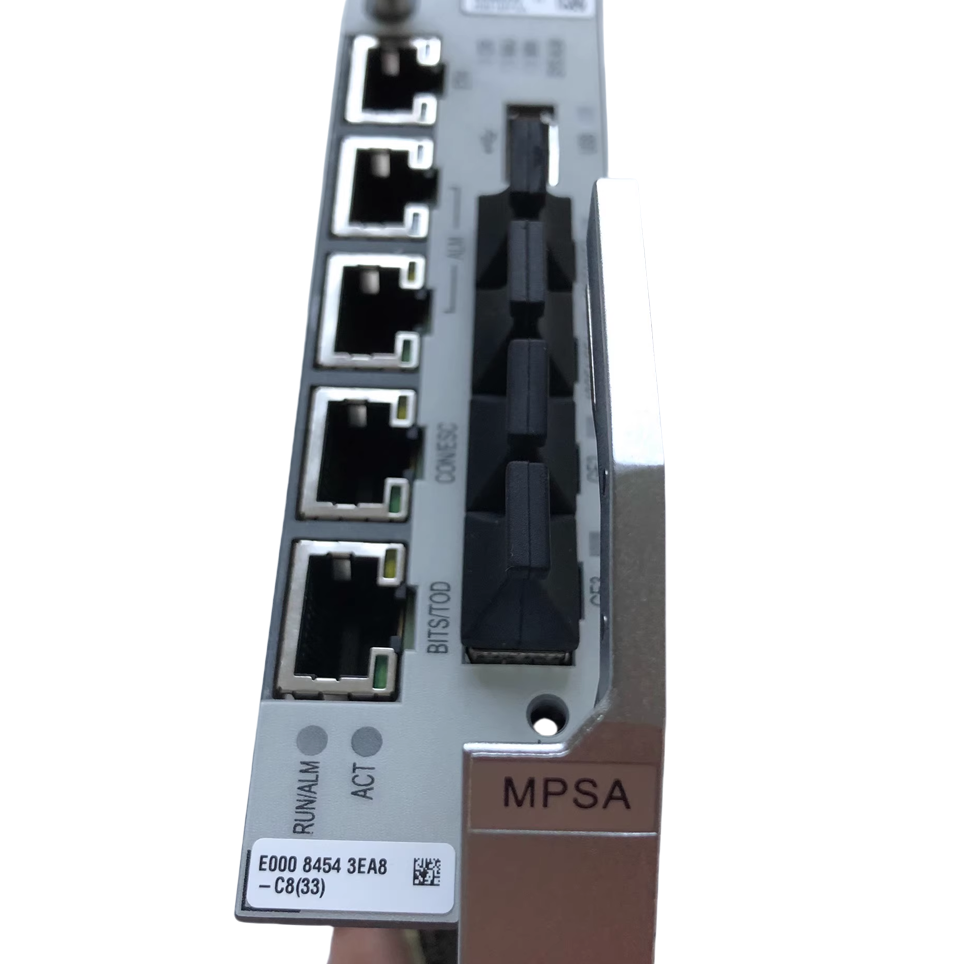

H901MPSA is Huawei MA5800 X2 main control board integrated with 2-port 10GE/GE optical uplink port, 2-port GE optical uplink port.
The H901MPSA board is a super control unit board for optical access. It is the core for system control and service switching and aggregation, and is used for MA5800-X2 subracks.It supports active/standby switchover at the control plane and load sharing mode at the forwarding plane, doubling processing performance.
| Specification | |
| Bandwidth per slot | 40Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 4096 |
| Multicast user | 4096 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 32768 |
| ND table | 16384 |
| ARP table | 32768 |
| Maximum Frame Size | 2052 bytes 9216 bytes (jumbo frame enabled) |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption | Static: 30W Maximum: 43W |
| Mechanical Specification | |
| Dimensions(mm) | 35.28 (W)x 258.15 (D) x 130.36 (H) |
| Weight(kg) | 0.99 |
