H901MPLA Control Board

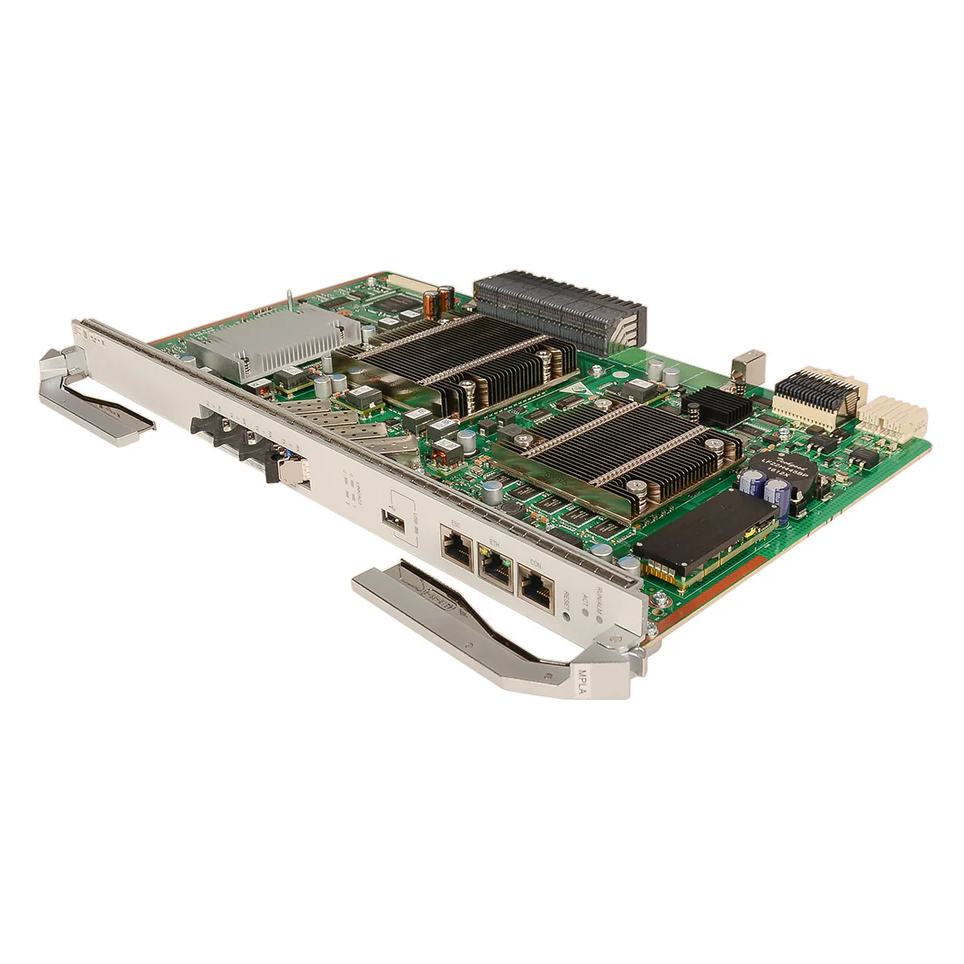

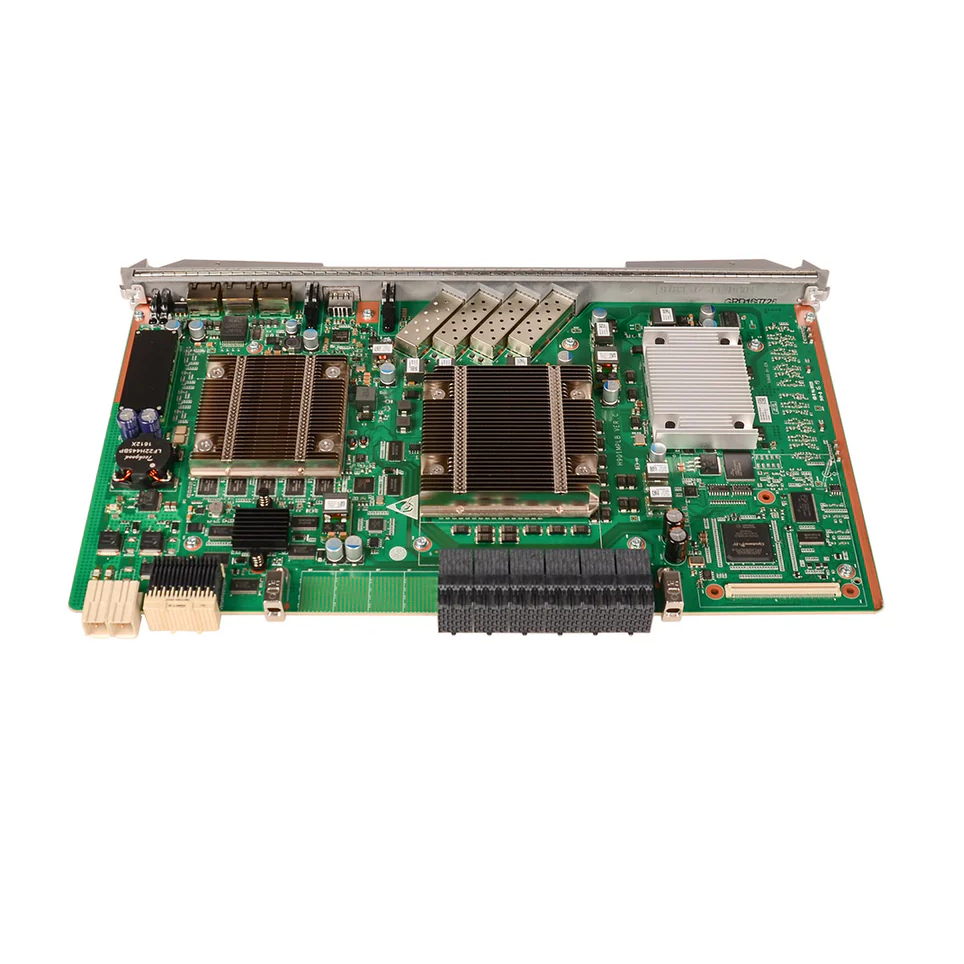

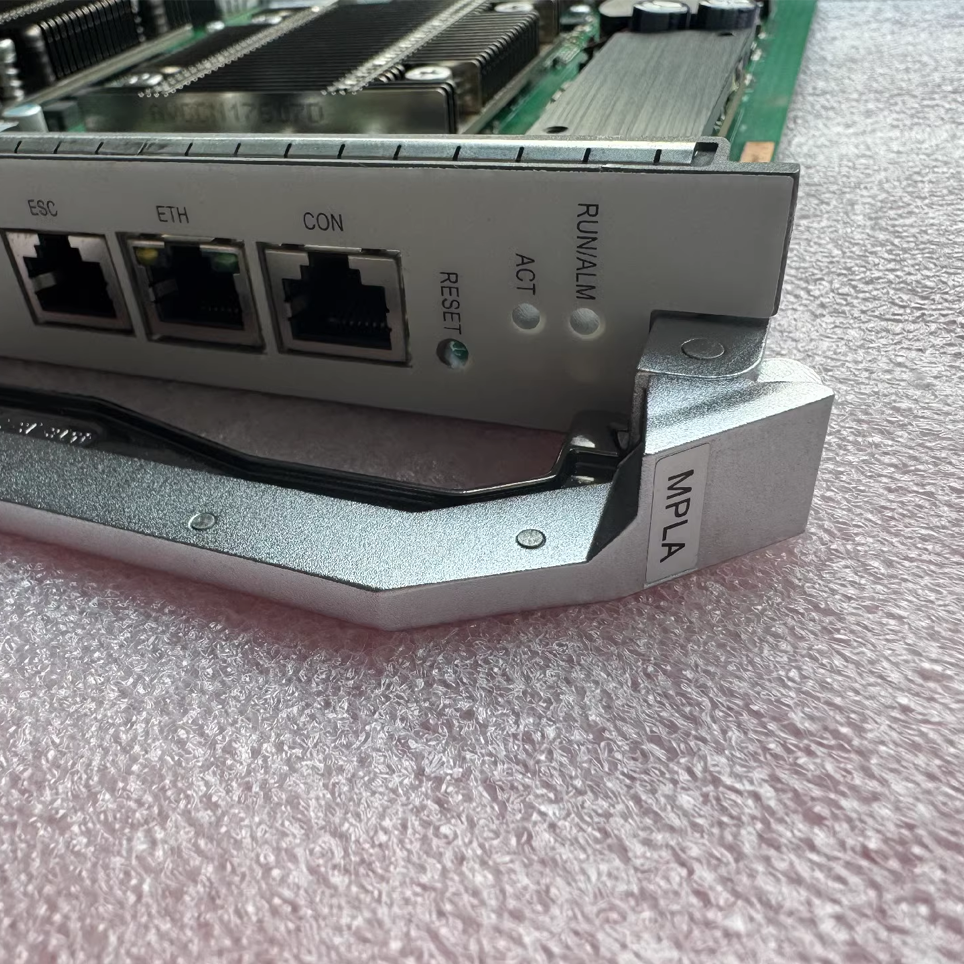

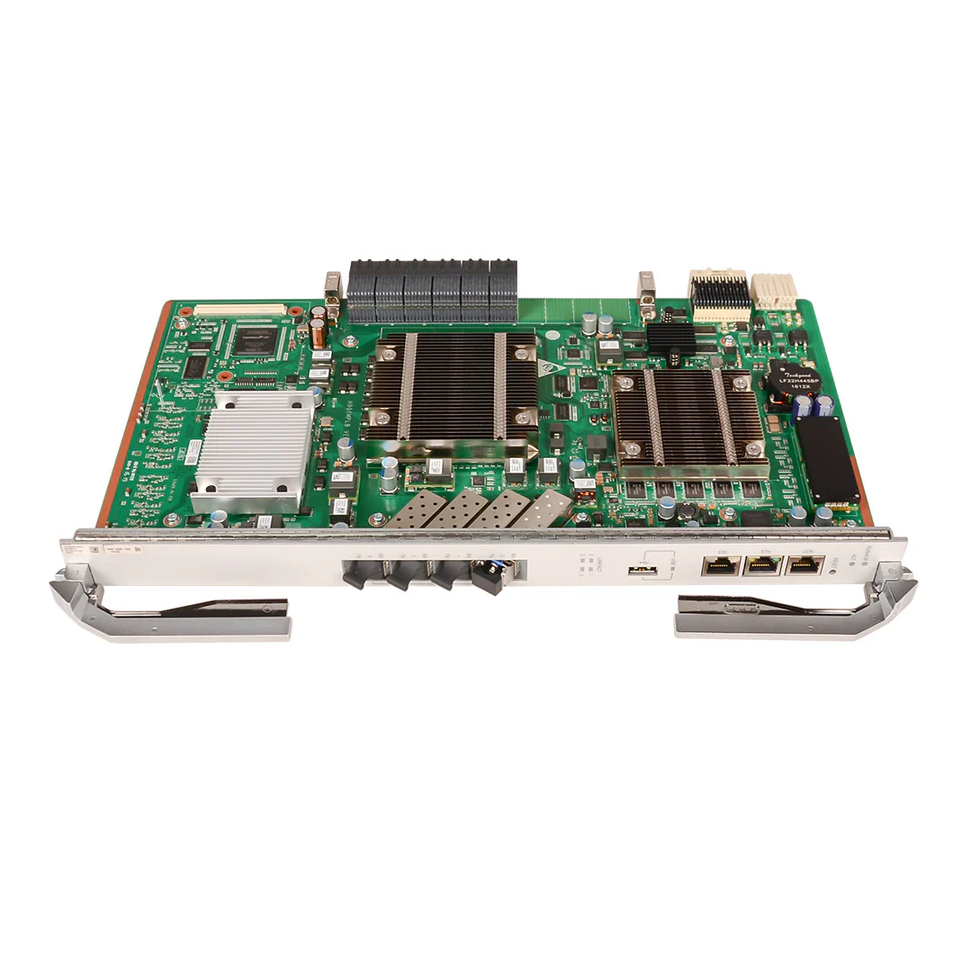

H901MPLA is Huawei MA5800 X7/X15/X17 main control board integrated with 4-port 10GE/GE optical uplink port
The H901MPLA board is a super control unit board for optical access. It is the core for system control and service switching and aggregation, and is used for MA5800-X17/X15/X7 subracks.
| Board | Channel to the service/Upstream interface board | Maximum Bandwidth per Slot |
| H901MPLB | 17 100GE channels | 200 Gbit/s (load sharing mode) |
| H901MPLA | 17 50GE channels | 100 Gbit/s (load sharing mode) |
| Function | |
| Bandwidth per slot | 100Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 17408 |
| Multicast user | 17408 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 139264 |
| ARP table | 131072 |
| Maximum Frame Size | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption (W) | Static: 53 Maximum: 87 |
| Mechanical Specification | |
| Dimensions(mm) | 31 (W)x 258.9 (D) x 399.1 (H) |
| Weight(kg) | 1.24 |
