H901CSPD Card

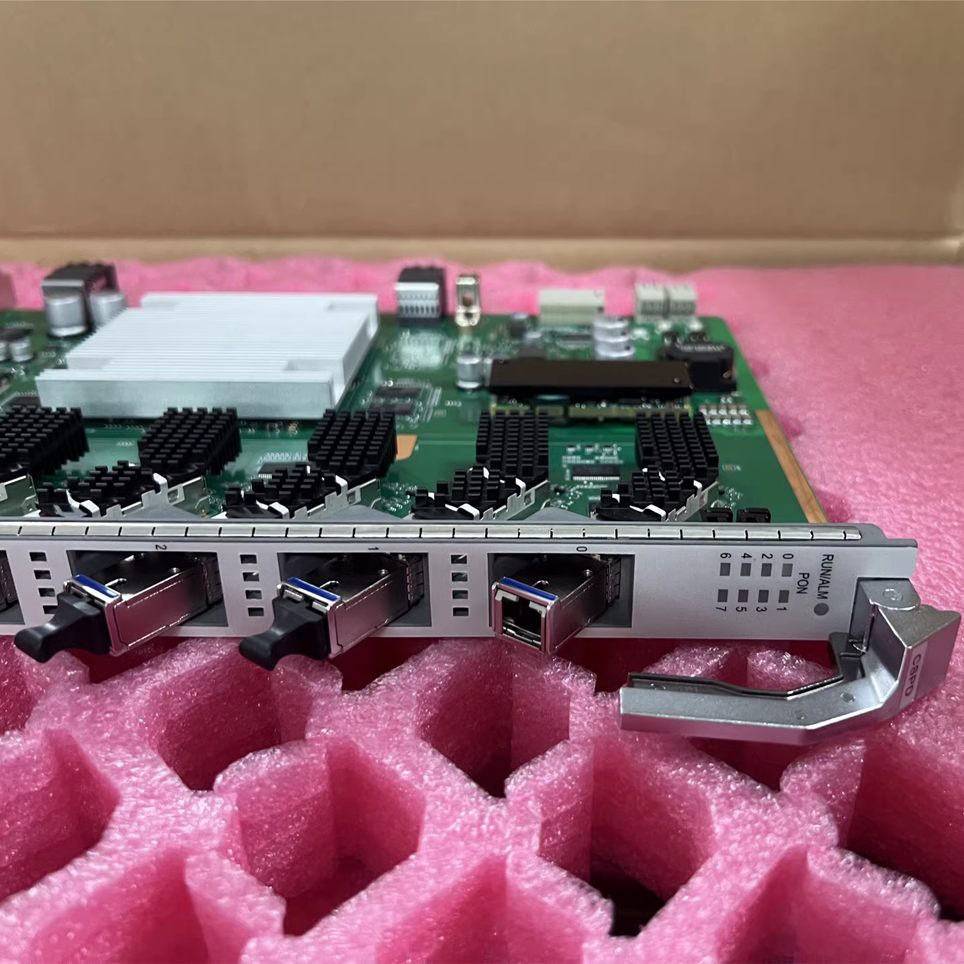

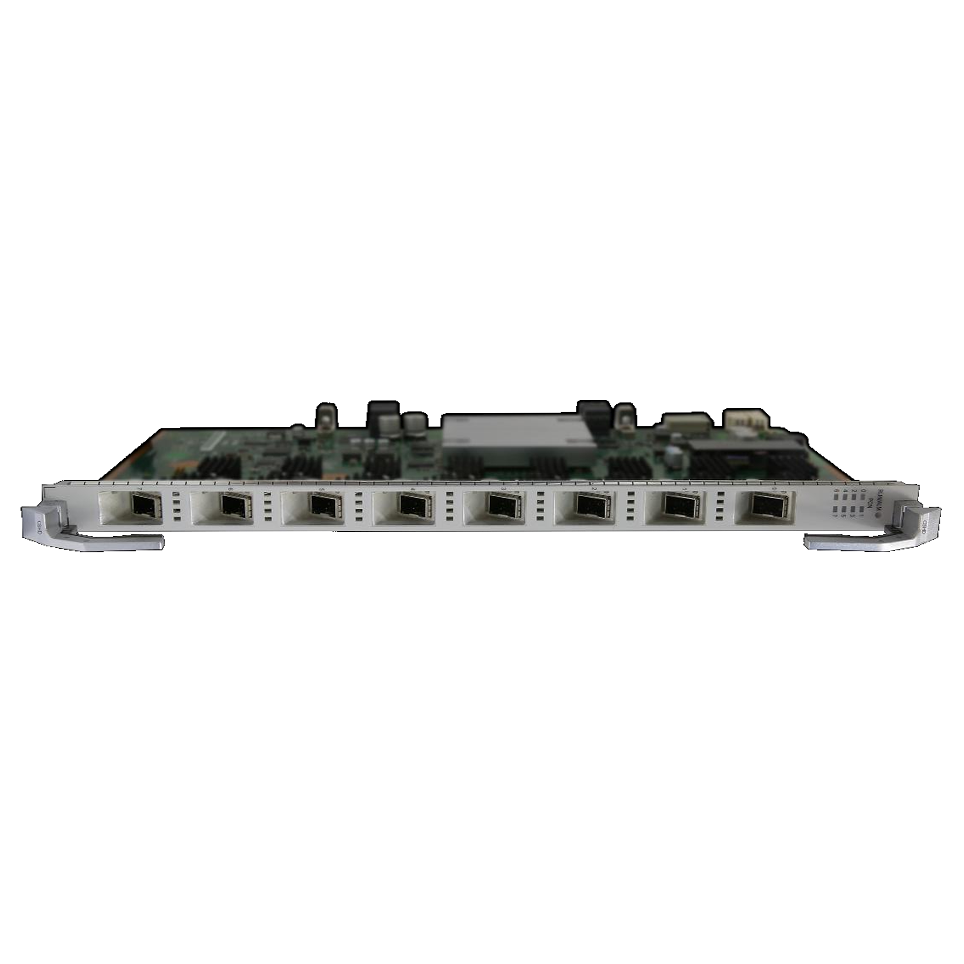

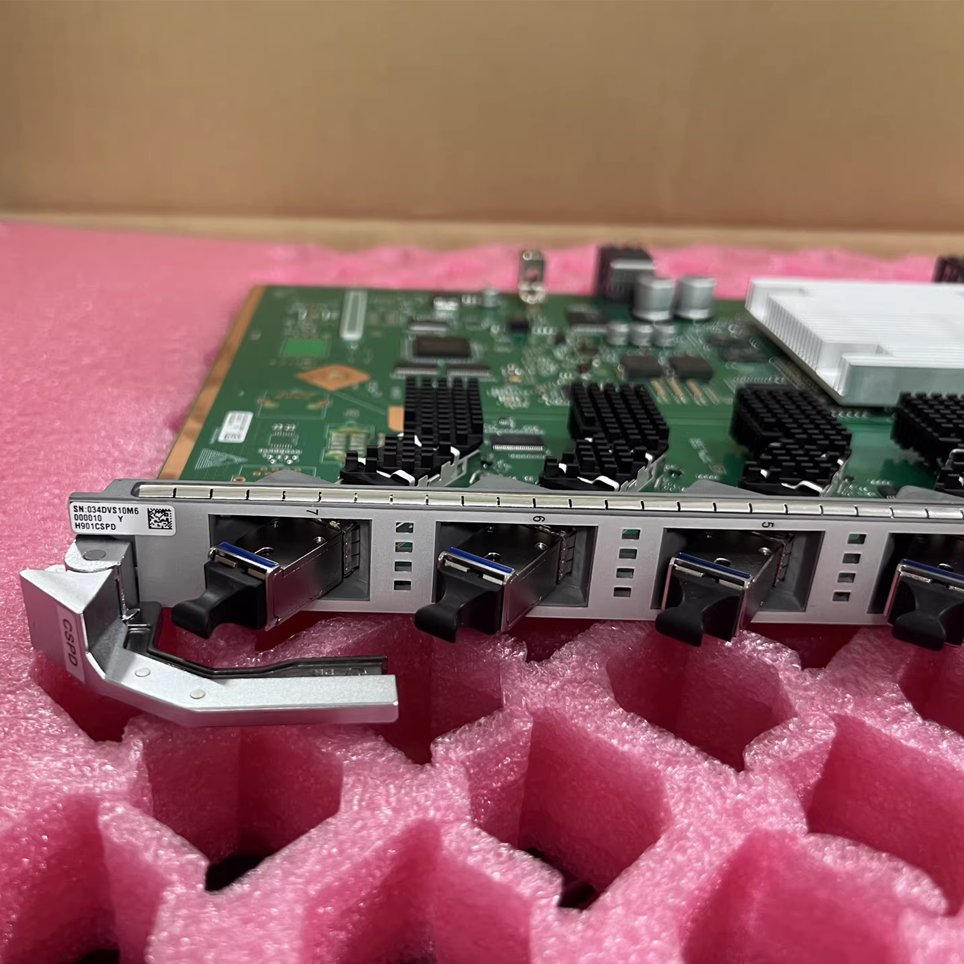

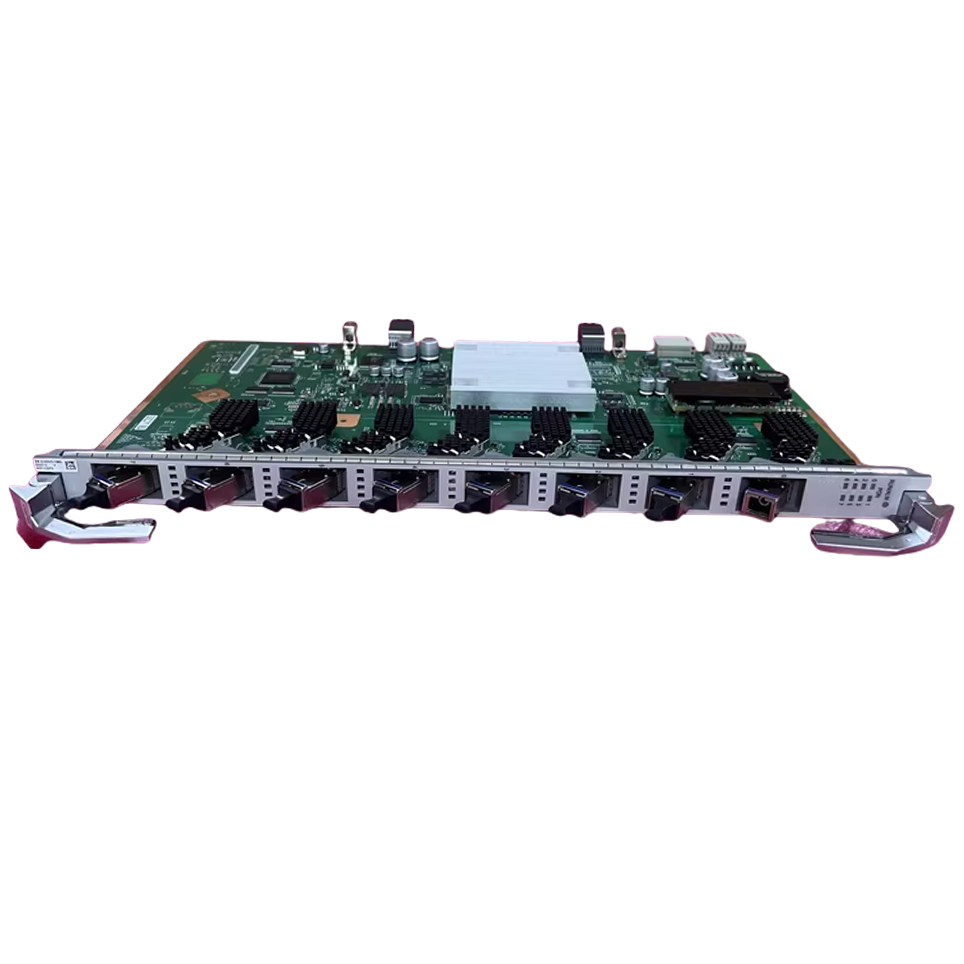

H901CSPD Is Huawei MA5800 P2MP Private Line Interface Board.
The H901CSPD board is an 8-port XGS-PON and GPON Combo Private Line OLT interface board. It works together with the optical network unit (ONU) to provide XG(S)-PON and GPON access services.
Benefits
l High reliability
Chip-level type B protection (single-homing and dual-homing) and type C protection (single-homing and dual-homing) switching
Real-time rogue ONT detection and isolation, ensuring stable service running
l High-value services
4-level HQoS, improving user experience
9216 jumbo frames, greatly improving transmission efficiency
l Intelligent management channel
Smart processing of XG(S)-PON and GPON services, meeting hybrid service requirements and reducing board and spare part types
l Easy OAM
Variable-length of OMCI, improving upgrade efficiency and reducing break off time
A maximum distance difference of 40 km between two ONUs under the same PON port, simplifying network planning
VMOS, improving video troubleshooting efficiency
External Interfaces
8* XGS-PON&GPON ports (SFP+)
l Max. split ratio:
GPON: 1: 128
XG(S)-PON: 1: 256
Specifications
| Function | |
| Forwarding capability | 100 Gbit/s |
| Rate mode | Asymmetric rate Symmetric rate |
| T-CONTs per PON port | GPON: 1024
XG(S)-PON: 2048 |
| Service flows per PON board | 16368 |
| Maximum frame size | 2052 bytes
9216 bytes (jumbo frame enabled) |
| Maximum number of MAC addresses | 131072 |
| Maximum distance difference between two ONUs under the same PON port | 40 km |
| FEC | Bidirection |
| CAR group | Supported |
| HQoS | Supported |
| Variable-length OMCI | Supported |
| ONU-based shaping or queue-based shaping | Supported |
| Type B protection (single-homing) | Supported |
| Type B protection (dual-homing) | Supported |
| Type C protection (single-homing) | Supported (applicable to GPON channels) |
| Type C protection (dual-homing) | Supported (applicable to GPON channels) |
| 1588v2 | Supported |
| Rogue ONT detection and isolation | Supported |
| Automatic shutdown at high temperature | Supported |
| Energy saving for service boards | Supported |
| Environment | |
| Operating temperature | -40 C to +65 。C |
| Power consumption | Static: 28 W |
| Maximum: 57 W | |
