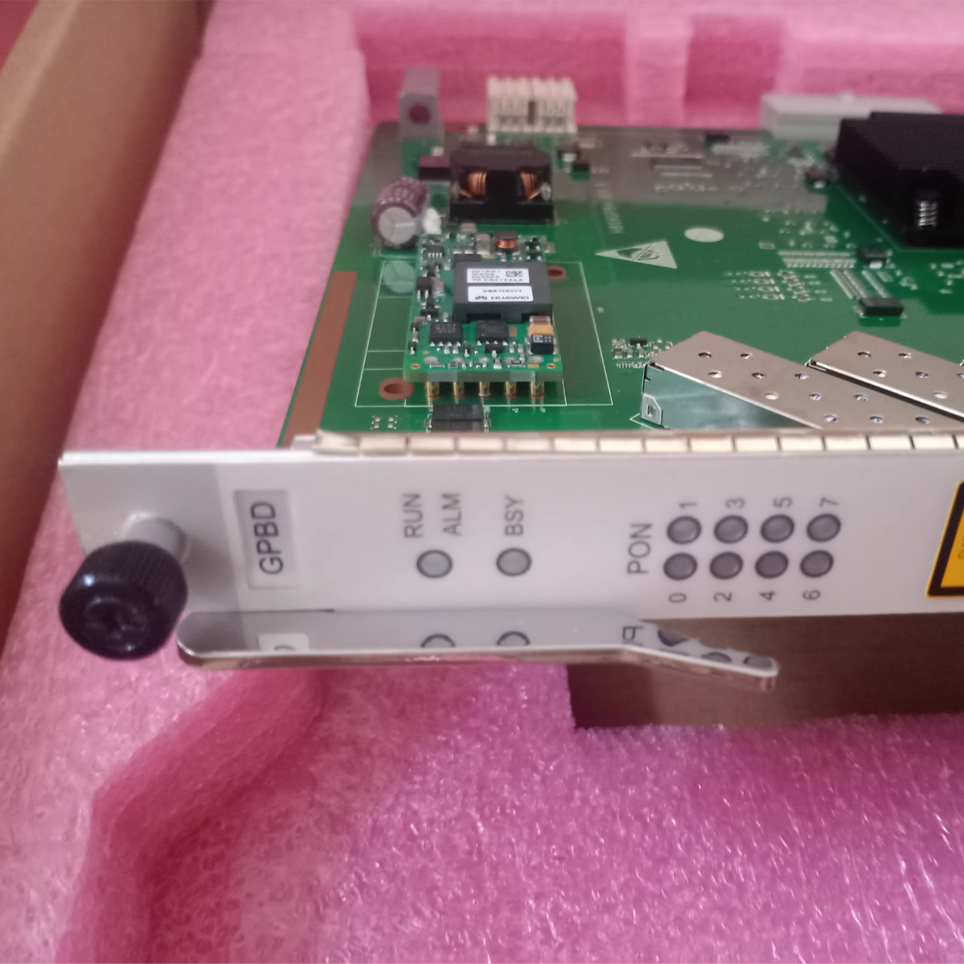

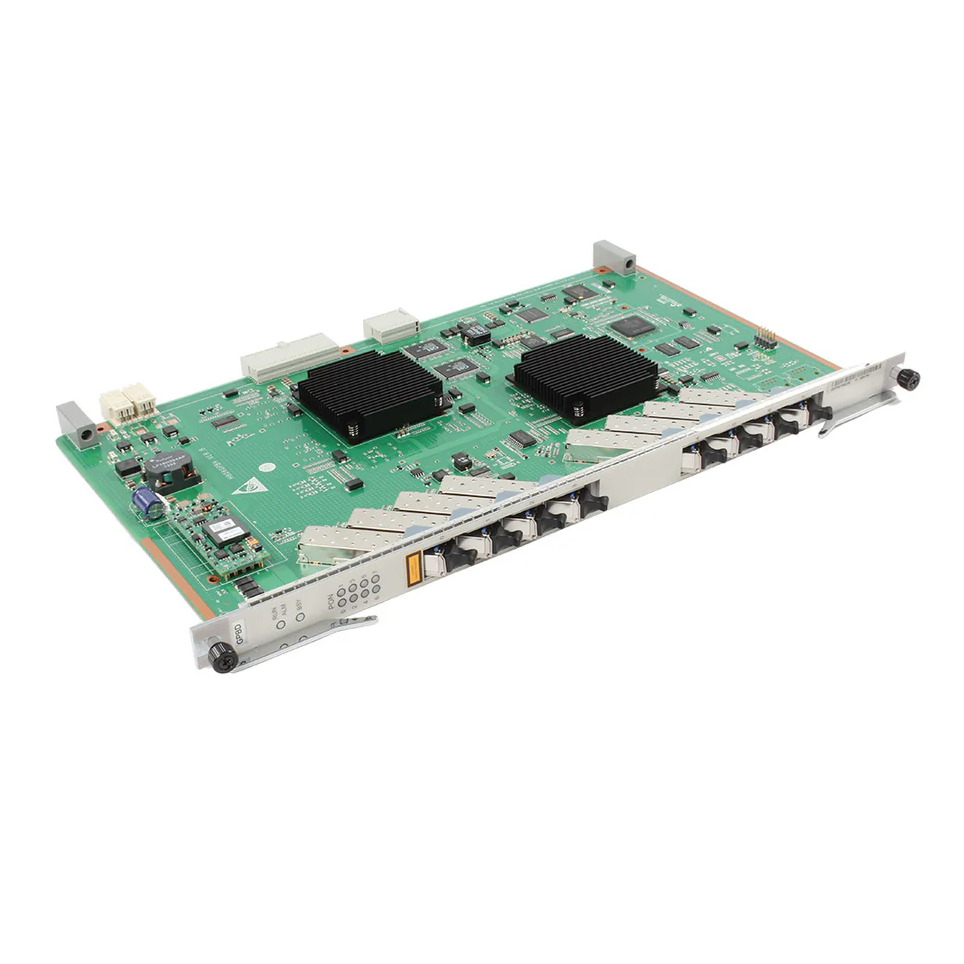

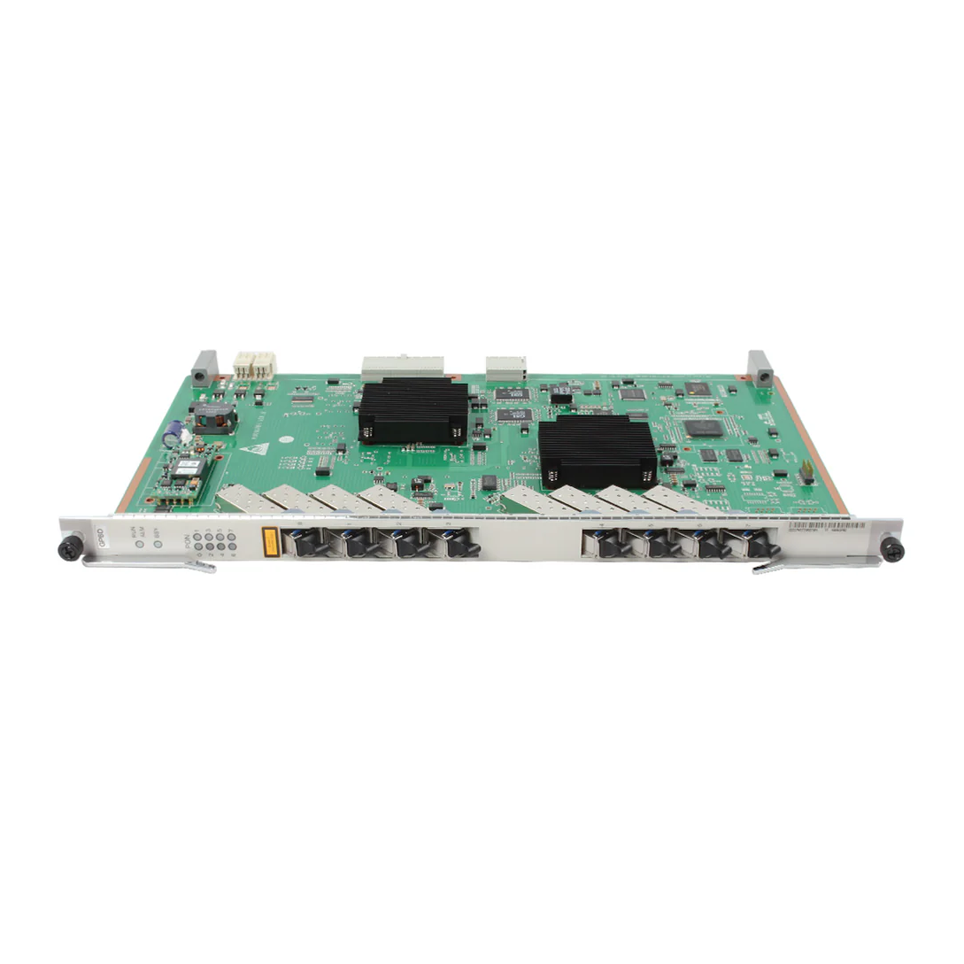

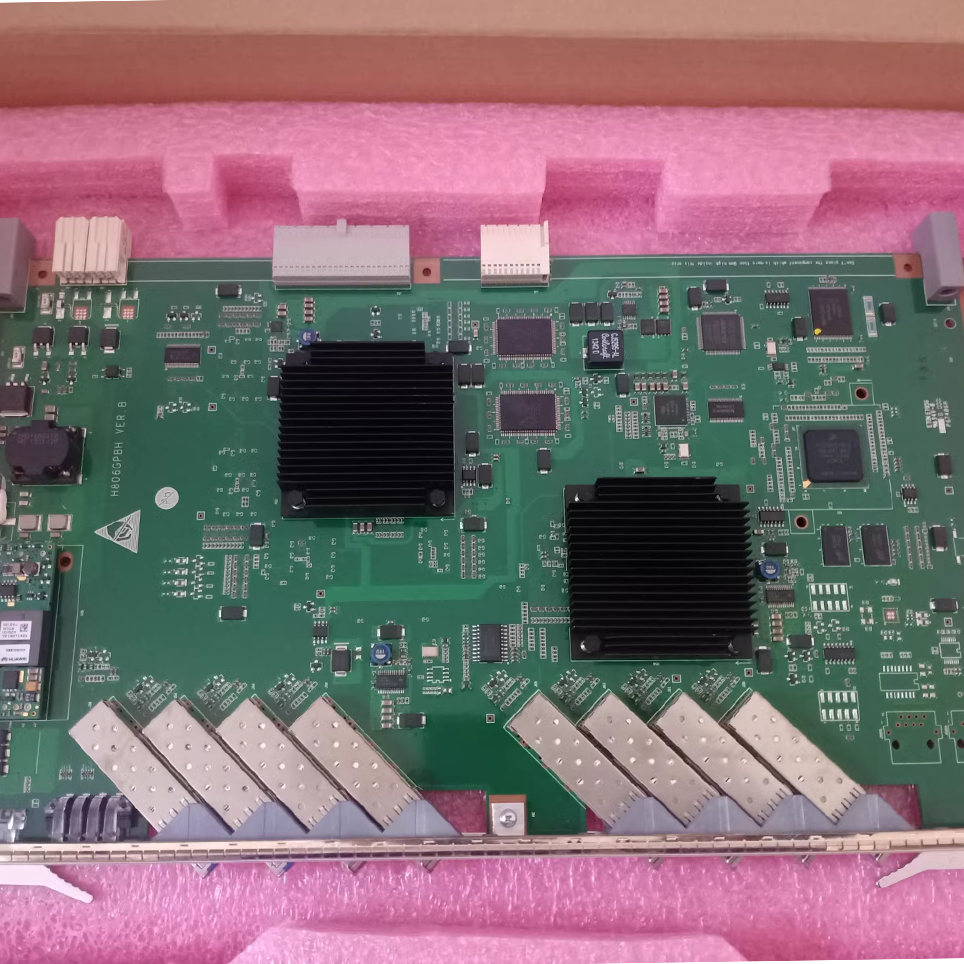

H806GPBD C+
Huawei H806GPBD C+ is MA5608T MA5683T MA5680T 8-port GPON OLT interface board with C+ SFP module
Huawei GPBD Service Board is 8 port GPON interface board for Huawei OLT, and provide GPON service access.
Support split ratio 1:128
Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s
Interface Type: SC/PC
Max Transmit Distance: 20KM
Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
| Specification | |
| Service ports | |
| GPON Port | 8-GPON Port |
| GPON SFP Module Specification | |
| Type | C+ Module : One-fiber bi-directional optical module, class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
| Minimun Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | H802GPBD : Static: 45 W, Maximum: 51 W H805GPBD : Static: 43 W, Maximum: 49 W |
| Maximum Frame Size | For V800R011C00 and earlier versions: 2000 bytes For V800R012C00 and later versions: 2004 bytes |
| Operating temperature | -25°C to +65°C |
