H802X2CS

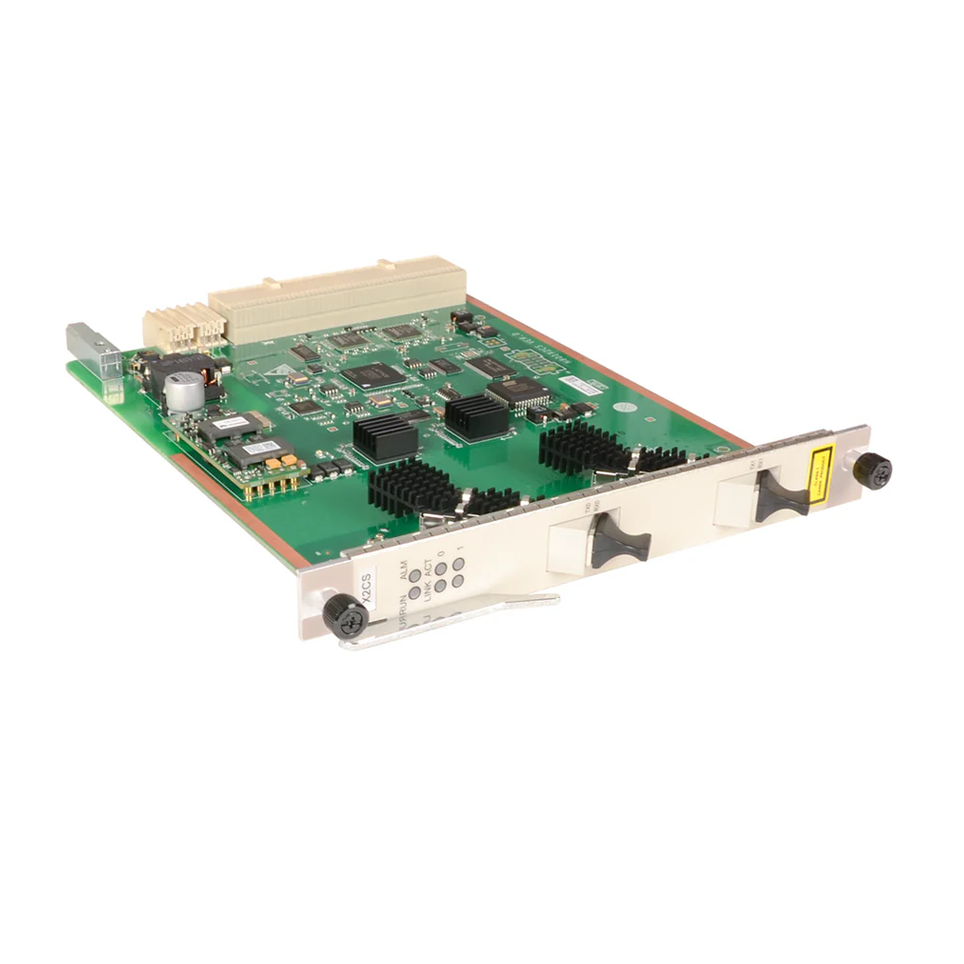

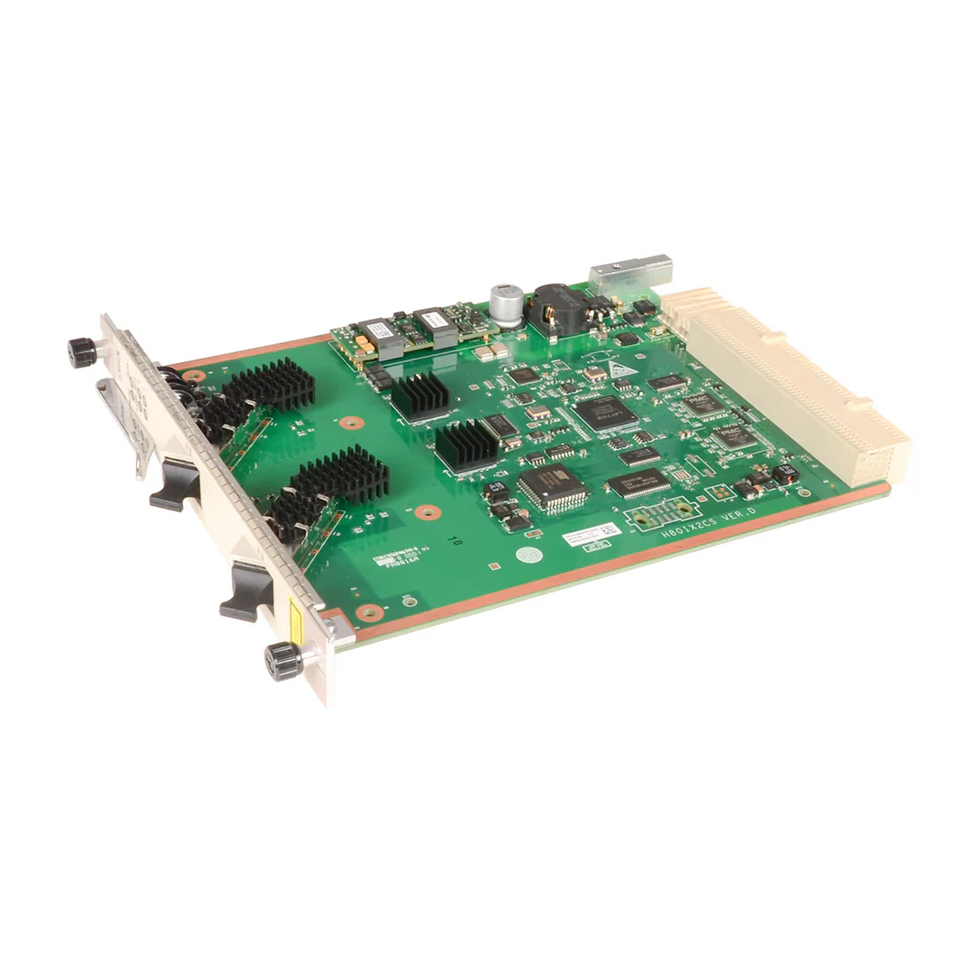

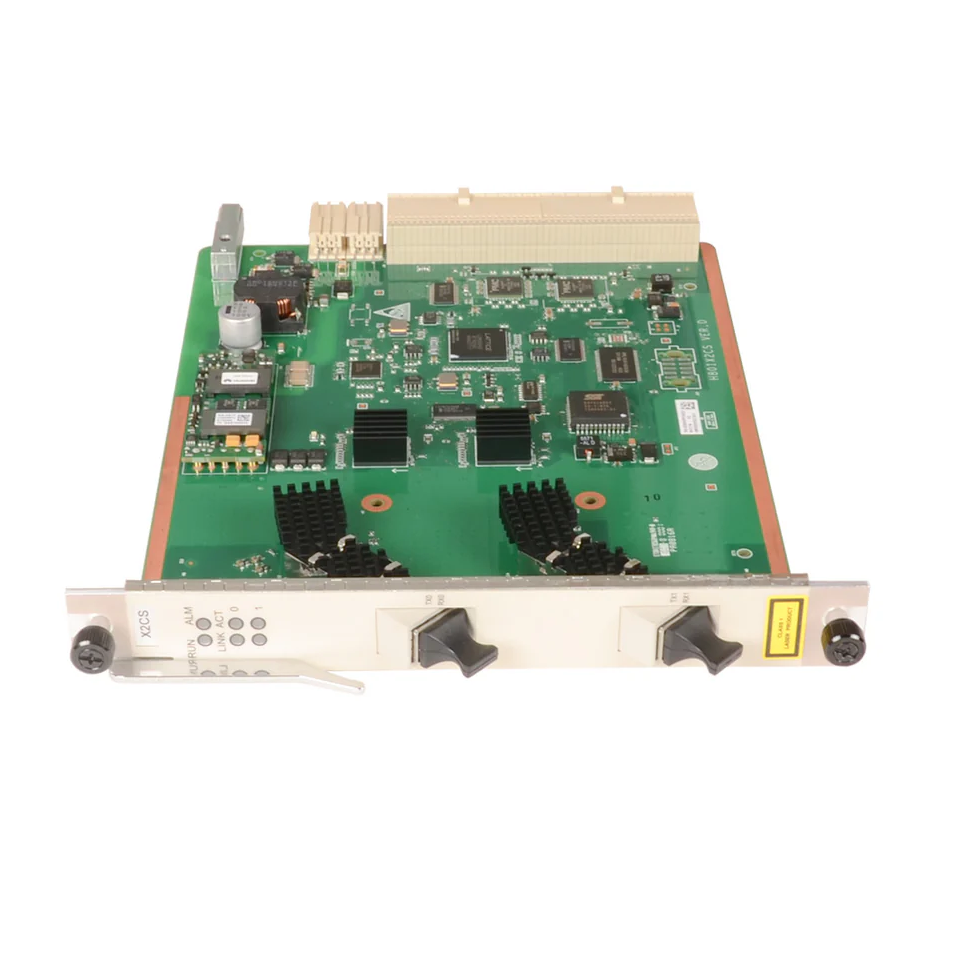

Huawei H802X2CS is the MA5683T,MA5680T 2-port 10GE optical uplink board
The H802X2CS board is a 2-port 10GE/GE uplink interface card that provides two 10GE/GE upstream or cascading optical ports 10GE/GE synchronous Ethernet, 1588ACR (with CKMD).
| Model | X2CS |
| Port | 2 10GE Uplink Ports |
| Pluggable Module | SFP+ Module |
| Corresponding Control Board | SCUF/SCUN/SCUL/SCUH |
| Device Specifications | |
| Dimensions (mm) | 25.40 (W) x 237.00 (D) x 197.20 (H) |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 17.6 W Maximum: 18 W |
| Maximum Frame Size | 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported |
| Operating temperature | -25°C to +65°C |
