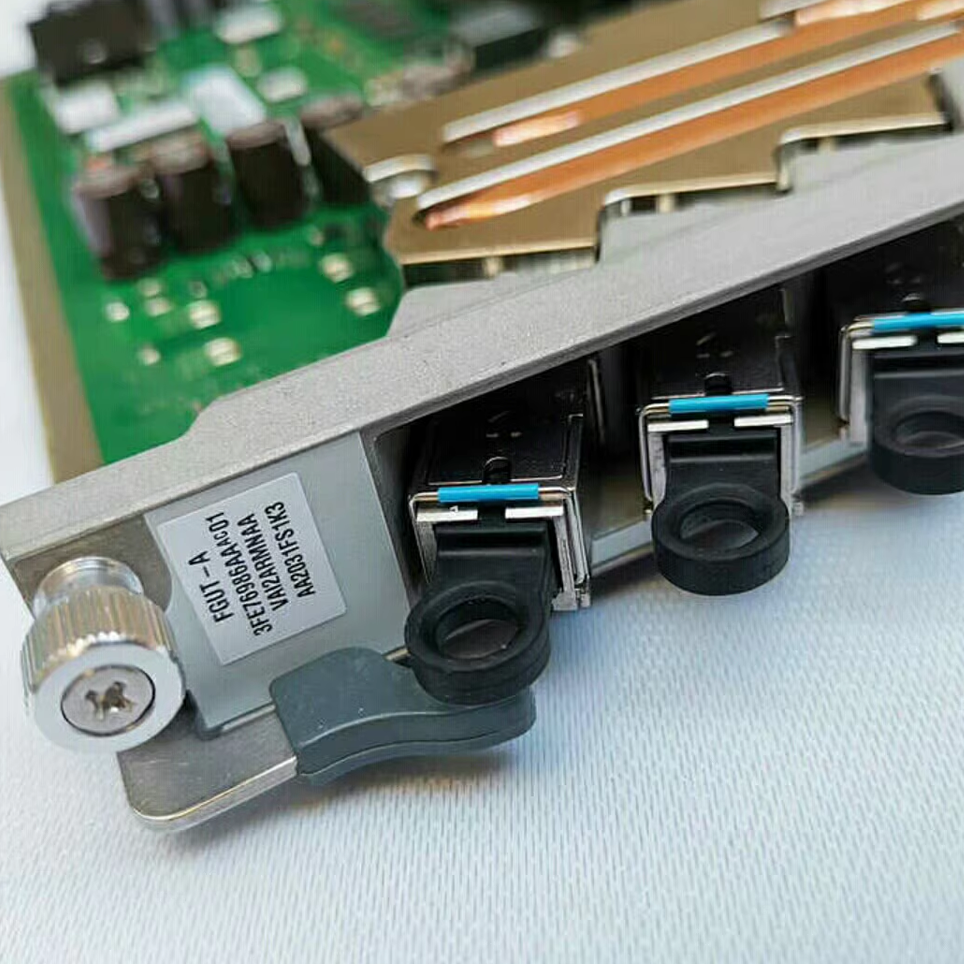

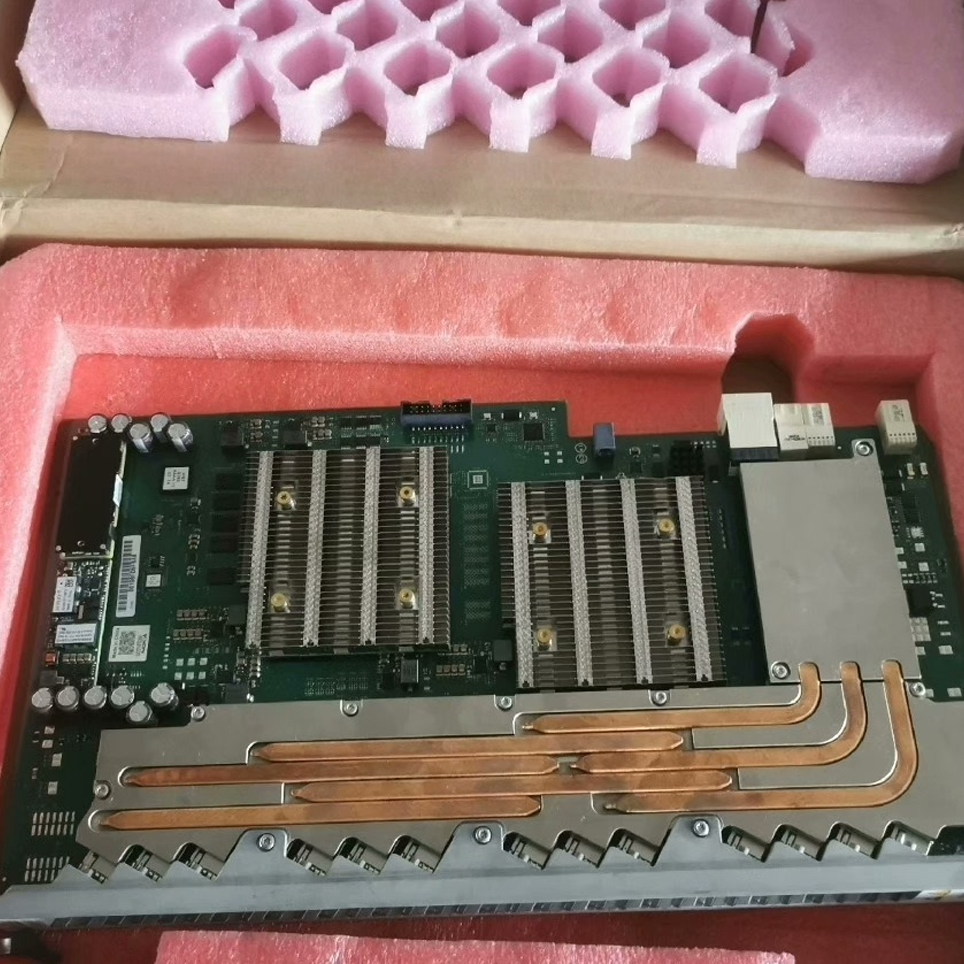

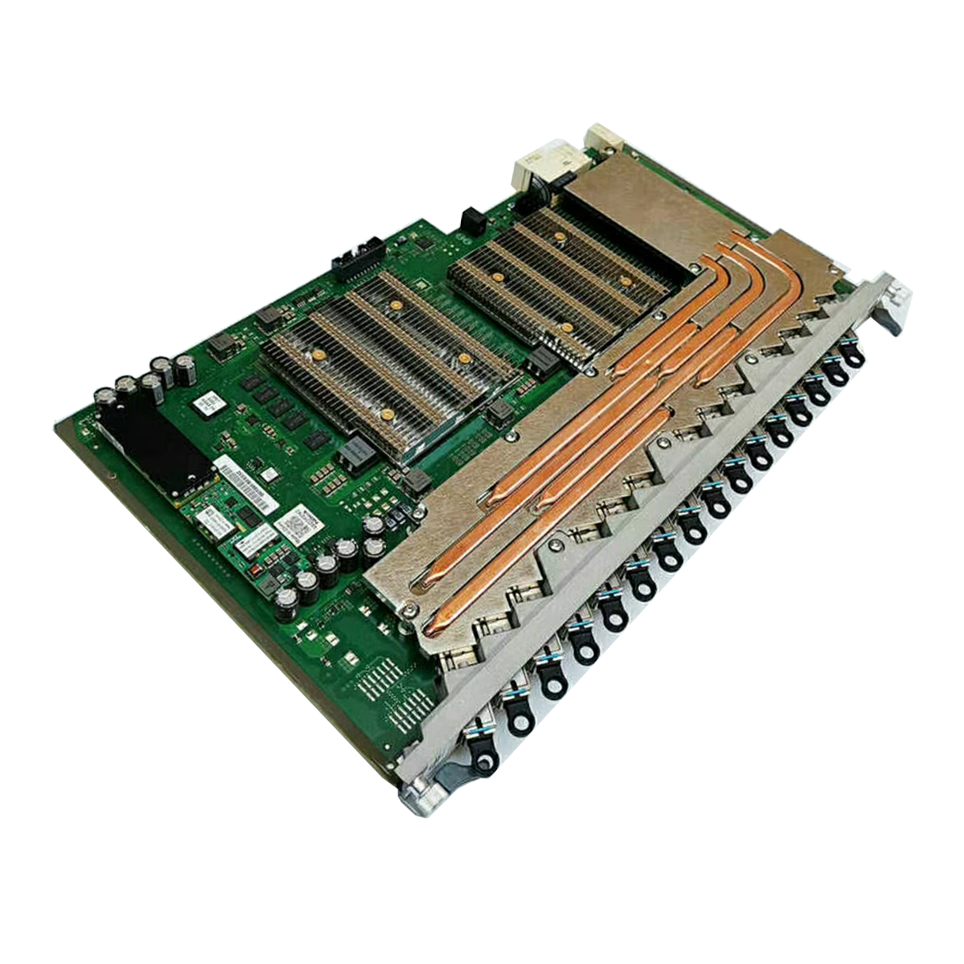

FGUT-A C+ Board

FGUT-A is the Nokia 16-port FGUT-A XGS-PON and GPON combo OLT Interface Board with C+ module.

NOKIA FGUT-A 16-port XGS-PON and GPON combo Board that applied to Nokia Alcatel-Lucent 7360 ISAM FX series OLT.

Specification
Service ports
GPON Port	16 XGS-PON & GPON ports

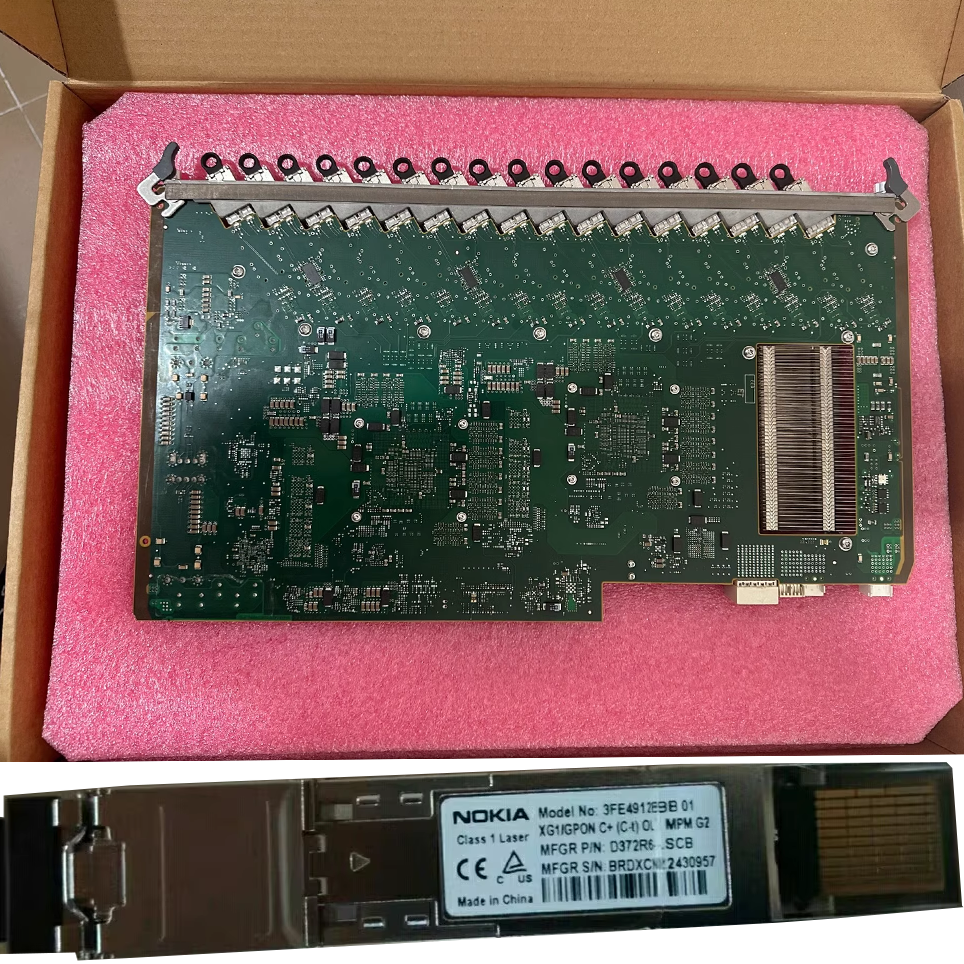

XGS-PON&GPON Combo PON Class C+ Module
Type	One-fiber bi-directional optical module
Operating Wavelength	GPON channel:Tx: 1490 nm Rx: 1310 nm XG-PON & XGS-PON channel: Tx: 1577 nm Rx: 1270 nm
Encapsulation Type	SFP+
Port Rate	GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XGS-PON channel: Tx: 9.953 Gbit/s Rx: 9.953/2.488Gbit/s
Minimum Output Optical Power	GPON channel: 3 dBm XGS-PON channel: 5 dBm
Maximum Output Optical Power	GPON channel: 7 dBm XGS-PON channel: 8 dBm
Maximum Receiver Sensitivity	GPON channel: -32 dBm XG-PON channel: -30.5 dBm XGS-PON channel: -29 dBm
Optical Connector Type	SC
Optical Fiber Type	Single-mode
Overload Optical Power	GPON channel: -12 dBm XG-PON channel: -10 dBm XGS-PON channel: -8 dBm
Extinction Ratio	8.2 dB
Function
Forwarding capability	200 Gbit/s
Rate mode	Symmetric rate
T-CONTs per PON port	GPON: 1024 XG(S)-PON: 2048
Service flows per PON board	16352
Maximum frame size	2052 bytes 9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses	131072
Maximum distance difference between two ONUs under the same PON port	40 km
Device Specifications
Dimensions (W x D x H)	23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption	Static: 48 W Maximum: 98 W
Operating temperature	-40°C to +65°C
