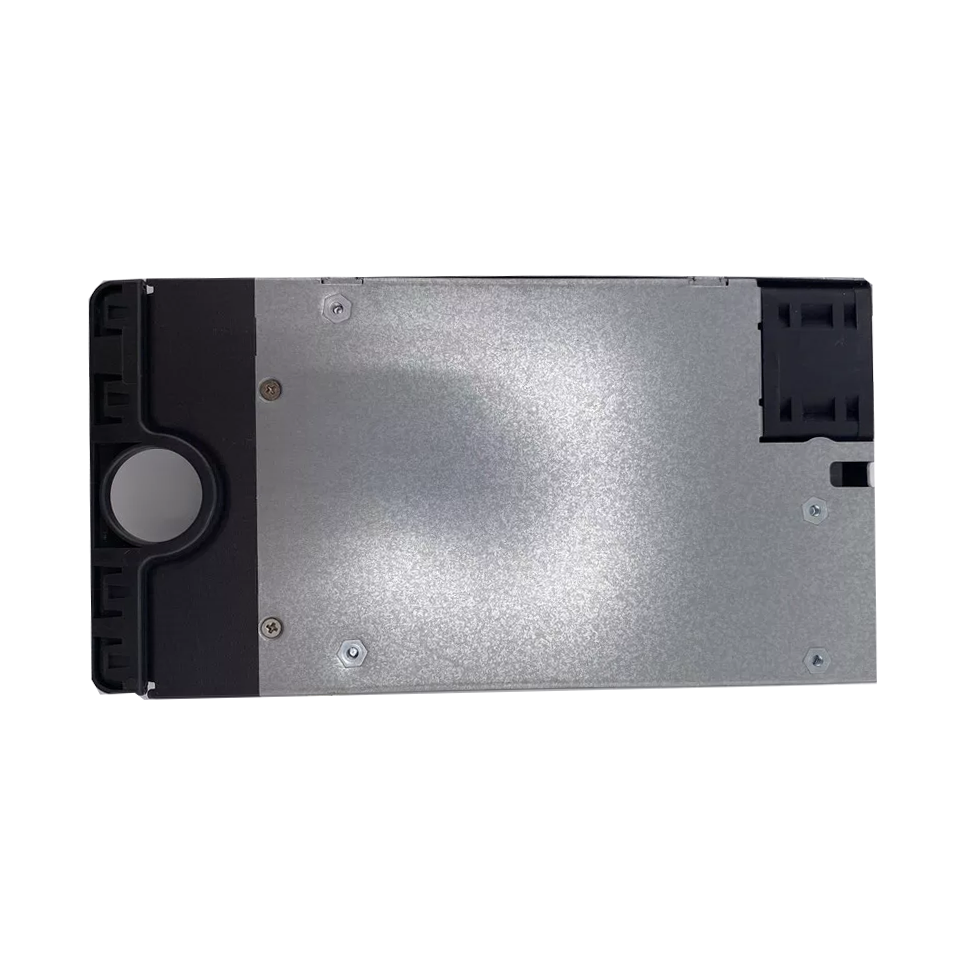

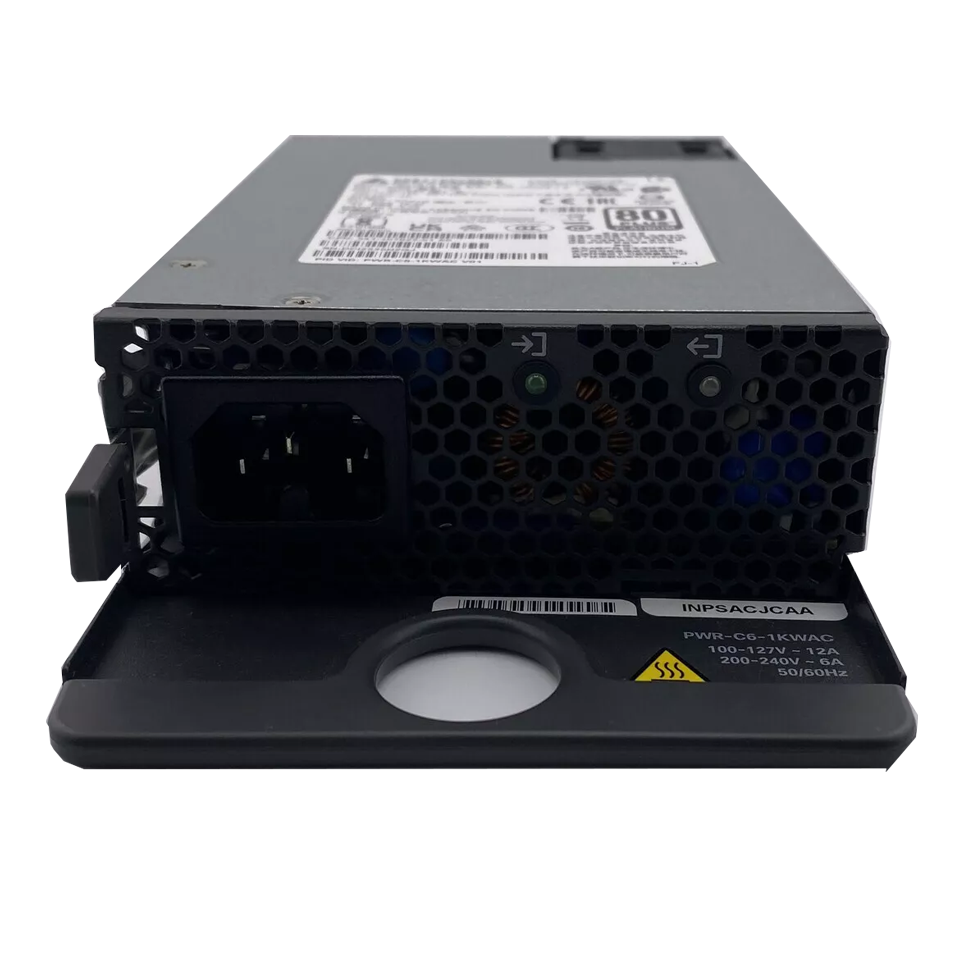

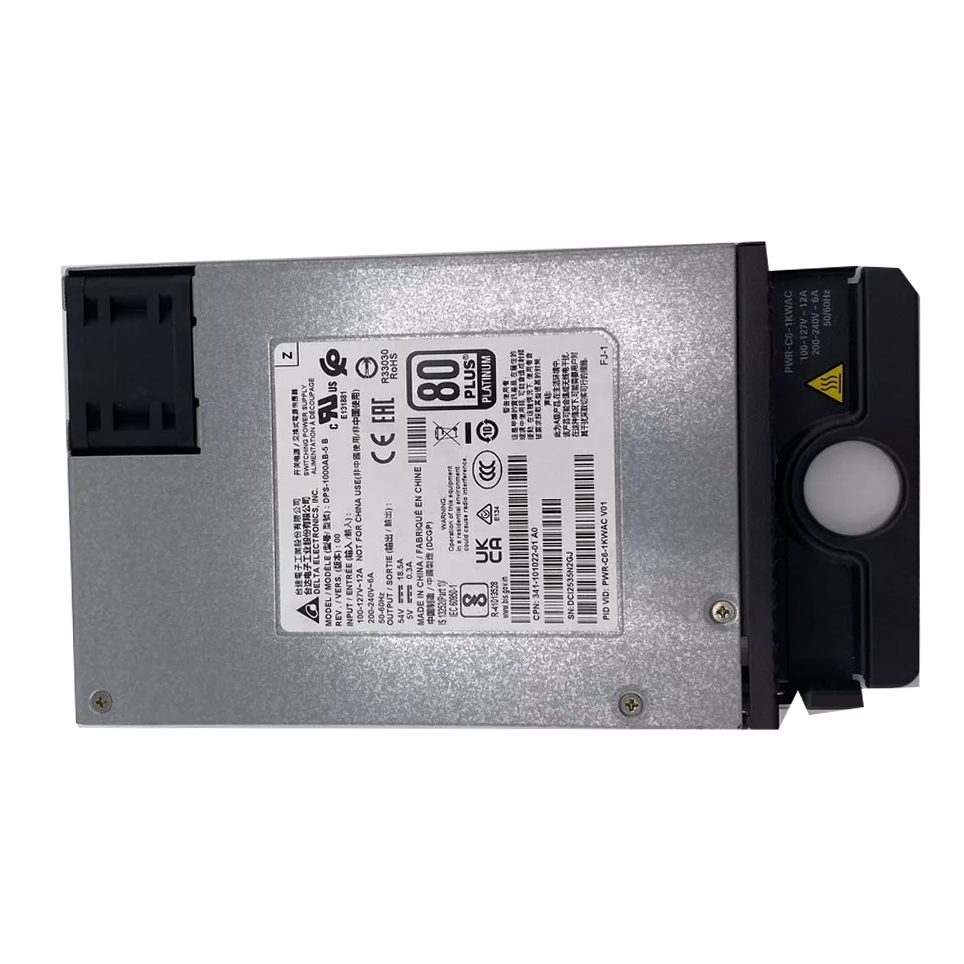

Cisco PWR-C6-1KWAC

Cisco PWR-C6-1KWAC Catalyst 9200 and 9200L Switch

Description
Reviews (0)

Cisco Catalyst 9200 Series switches support dual field-replaceable power supplies (Figure 3). Each switch ships with one default power supply, and a second identical power supply can be purchased with the initial order or can be added later. The second power supply can provide redundancy or additional power to PoE+ ports as needed.

PWR-C6-1KWAC= Specifications
Power supply rated maximum	Network hardware
Total output BTU (note: 1000 BTU/hr = 293W)	1000W
Input-voltage range and frequency	3412 BTU/hr, 1000W
Input current	100 to 240 VAC, 50 to 60 Hz
Output ratings	12-6A
Output holdup time	54V at 16.5A
Power-supply input receptacles	20 ms minimum at 100 VAC
Power cord rating	IEC 320-C16 (IEC60320- C16)
Physical specifications	15A
Supported Product Family	(H x W x D): 1.58” x 4.0” x 7.6” Weight: 2 lb (0.9 kg)
Operating temperature	Normal operating temperature^* and altitudes: ● -5°C to +45°C, up to 5000 feet (1500m) (-5°C to +40°C for C9200CX-8UXG-2X and C9200CX-8UXG-2XH) ● -5°C to +40°C, up to 10,000 feet (3000m) ^Minimum ambient temperature for cold start is 32°F (0°C) Short-term^ exceptional conditions: (9200L/9200 only) ● -5°C to +50°C, up to 5000 feet (1500m) ● -5°C to +45°C, up to 10,000 feet (3000m) ● -5°C to +45°C, at sea level with single fan failure ^*Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences
Storage temperature	-40° to 158°F (-40° to 70°C)
Relative humidity operating and nonoperating noncondensing	5% to 90% noncondensing
Altitude	10,000 ft. (3000 meters), up to 45°C
EMC compliance	FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55035, EN300 386^*, EN 61000-3-2, EN 61000-3-3
Safety compliance	UL 60950-1/62368-1, CAN/CSA-C22.2 No. 60950-1/62368-1, EN 60950-1/62368-1, IEC 60950-1/62368-1, CCC, CE Marking
LED indicators	“AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK
