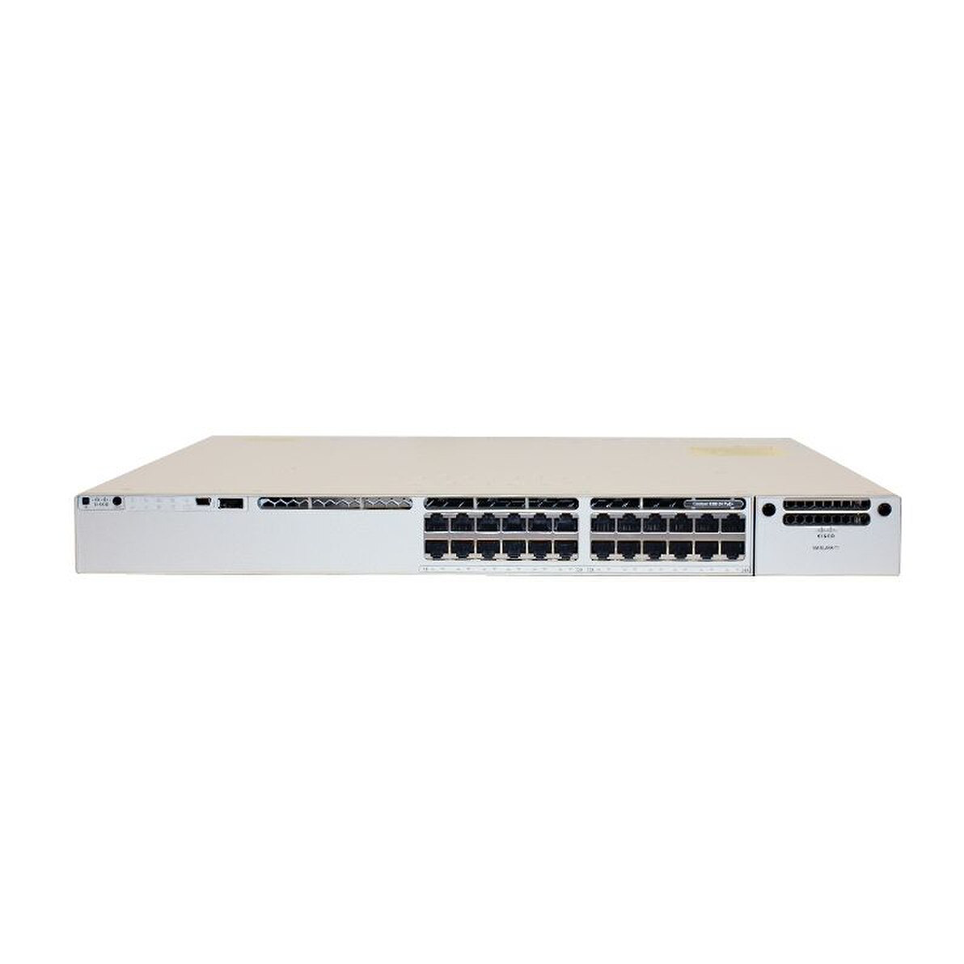

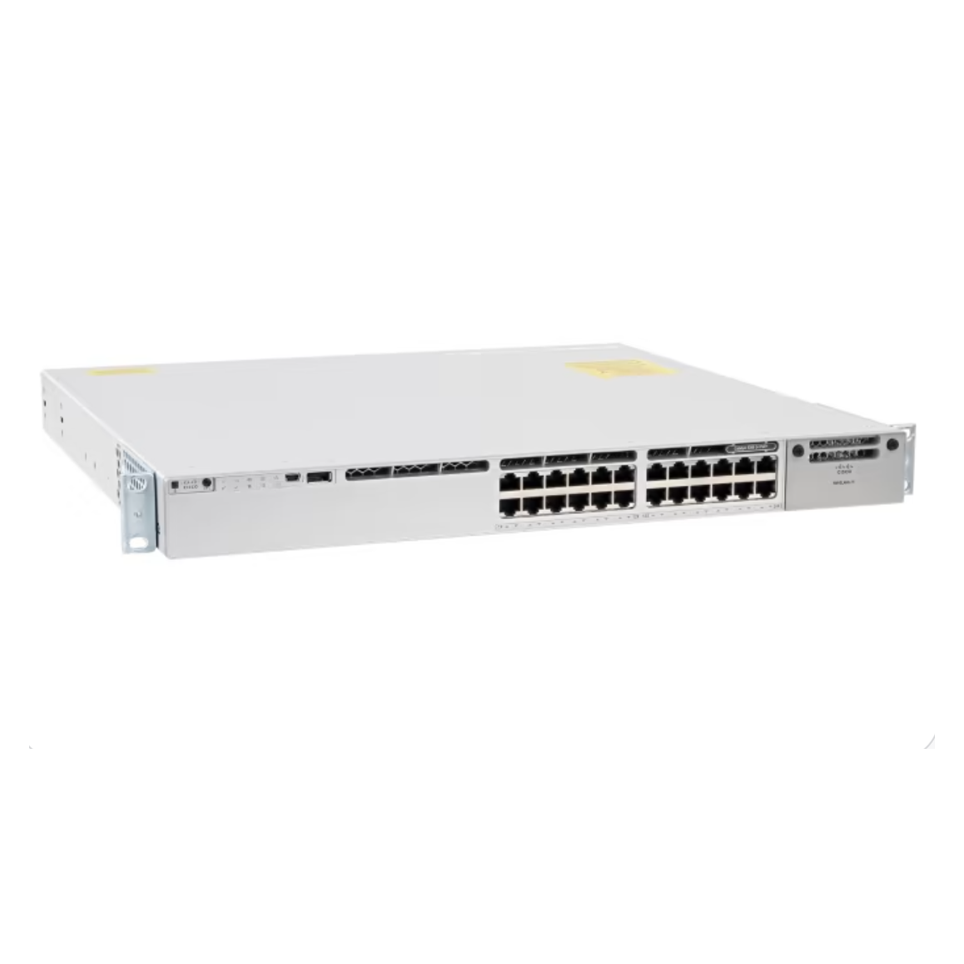

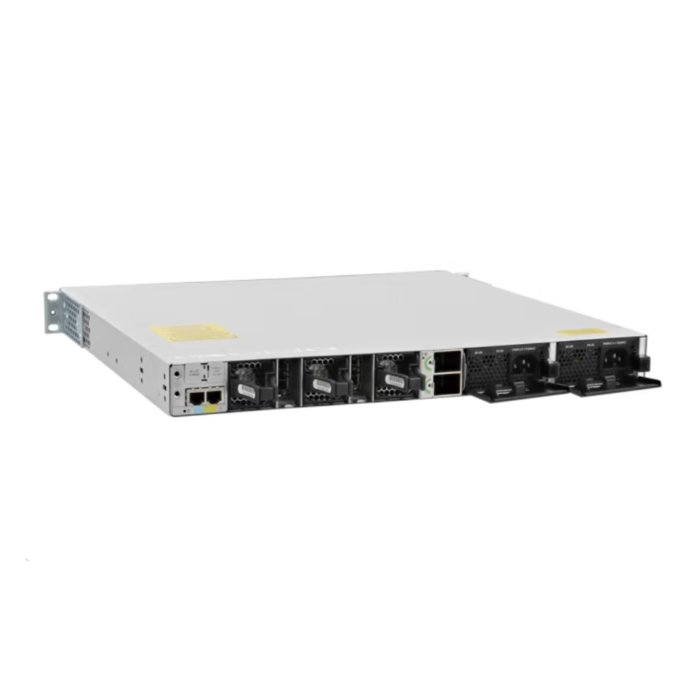

Cisco Catalyst C9300-24P-A
Cisco C9300-24P-A switch with 24x1Gbps RJ-45 Ports, PoE+, 1 AC power fixed.
C9300-24P-A is 24-port PoE+, Network Advantage Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
Tech Specs:
| Model | C9300-24P-A |
| Ports | 24x 1Gbps RJ-45 Ports |
| Active Ports | 24 |
| Transceivers Included | Not Included |
| Power Over Ethernet (PoE) | Supported |
| StackPower Technology | Supported |
| StackWise-320 Technology | Not Supported |
| StackWise-480 Technology | Supported |
| StackWise-1T Technology | Not Supported |
| Uplink Module Expansion Slots | 1 |
| Air Flow | Port-Side Intake |
| Power Supplies Installed | 2x 715W Redundant PSUs (2x PWR-C1-715WAC) |
| Fans Installed | 3x Field Replaceable (FRU) Fans (3x FAN-T2) |
| Operating System | IOS-XE |
| Licenses Installed | Network Advantage |
| Switching Capacity | 208 Gbps |
| Switching Capacity with Stacking | 688 Gbps |
| Management | Fully Managed |
| Chassis Type | 1U Rackmountable |
| Rack Mounting Kit | Rack Ears Included (3rd Party) |
| Smart Net Eligible | Eligible |
| Additional Information | 9300 C9300 |
