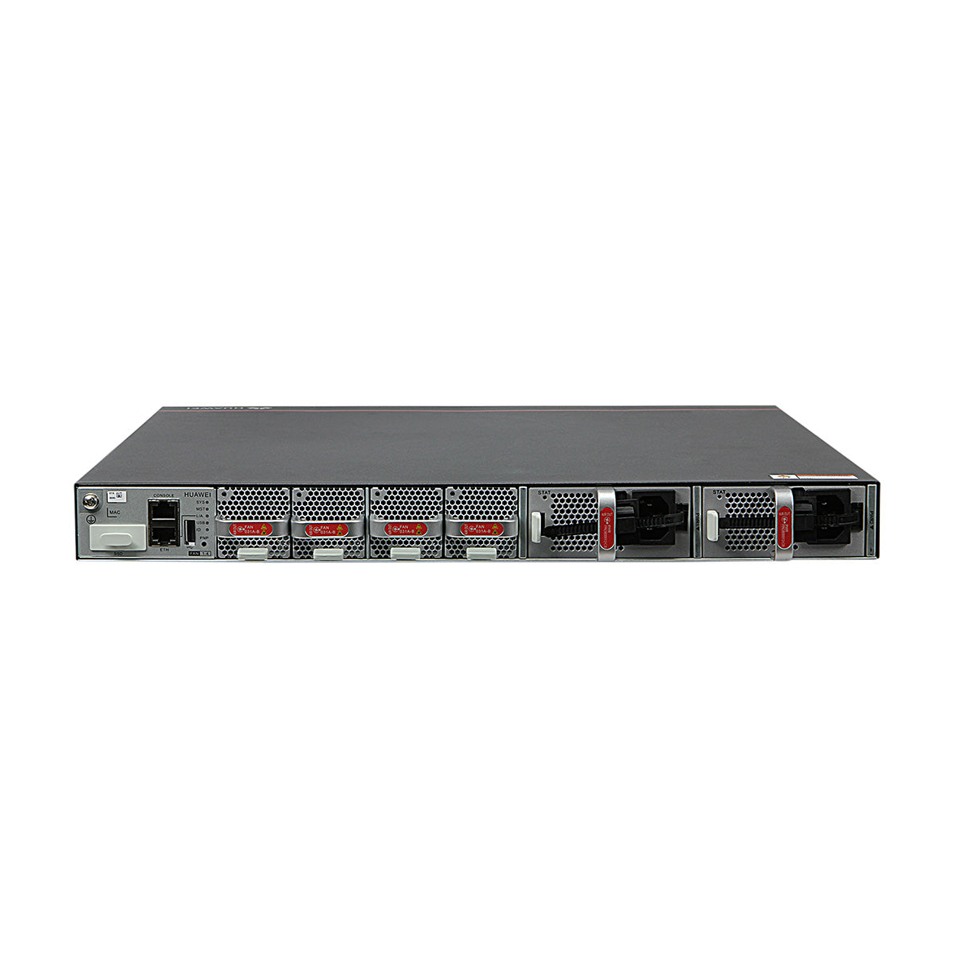

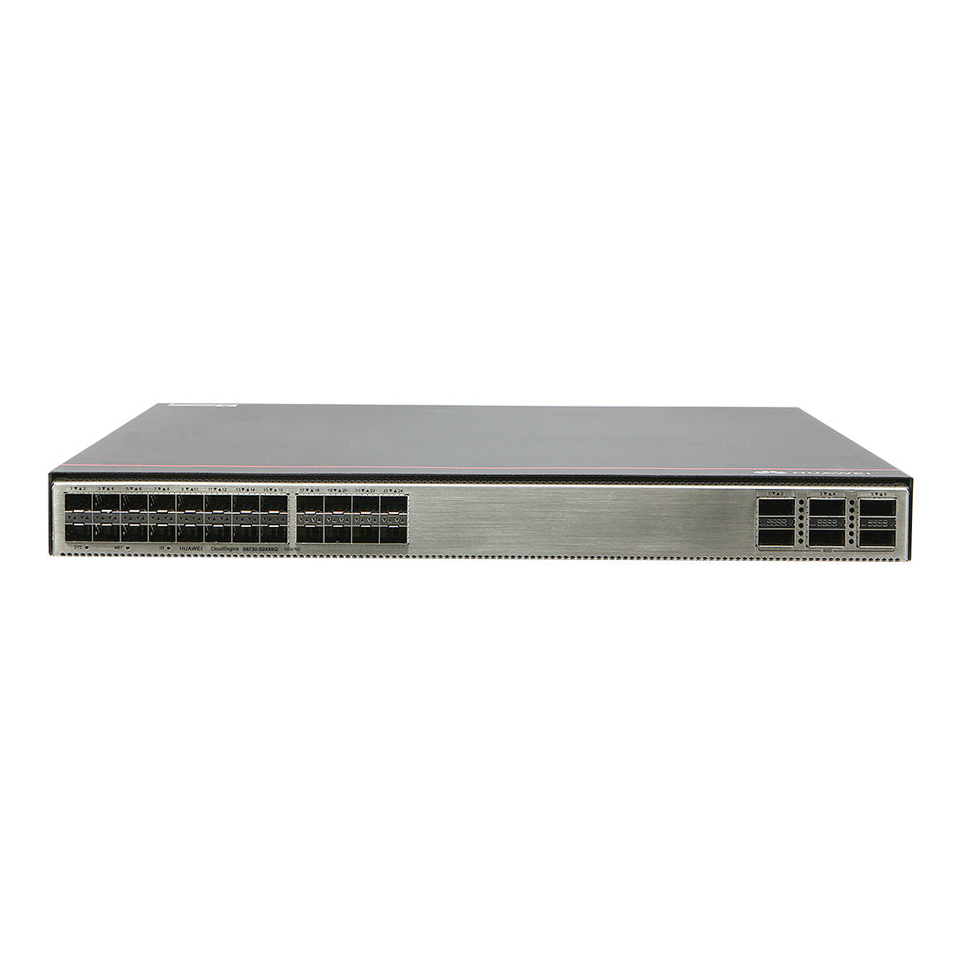

Huawei S6730-S24X6Q Switch
Huawei S6730-S24X6Q Switch with 24-port 10GE SFP+, 6-port 40GE QSFP+, 2 power slots
CloudEngine S6730-S series full-featured 10 GE switches are Huawei’s new generation fixed switches,to provide 10 GE downlink ports as well as 40/100 GE uplink ports.
CloudEngine S673o-S can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, CloudEngine S6730-S provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable,reliable, and secure campus and Metropolitan Area Network.
| Item | Description |
| Forwarding Performance | 490 mpps |
| Switching Capacity | 960 Gbit/s/2.4 Tbit/s |
| Fixed Ports | 24 x 10 GE SFP+, 6 x 40 GE QSFP+ |
| VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
| Super Virtual Fabric (SVF) | Functions as the parent node to manage the switches and APs vertically as one device for simpler management Supports a two-layer client architecture Supports third-party devices between SVF parent and clients |
| iPCA | Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device level |
| Interoperability | VBST (compatible with PVST, PVST+, and RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
| Memory (RAM) | 4 GB |
| Flash | 2 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 62.27 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | N/A |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm |
|
| Weight (with packaging) | 8.9 kg (19.62 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE QSFP+ ports (a maximum of 6 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| High-Voltage DC input: 240 V DC | |
| DC input: -48 V DC to -60 V DC | |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| High-Voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 249 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 135 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature | |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 02353AJW |
| 02353AJW-001 | |
| 02353AJW-003 | |
| 02353AJW-004 |
